Sony FX2 Digital Cinema Camera

Sony FX2 Overview

Key Features

• 33MP Full-Frame CMOS Exmor R Sensor
• 4K up to 60 fps | 1080p up to 120 fps
• 33MP Stills in S-Log3 at 800/4000 ISO
• AI-Powered Auto Focus & Framing
• Dynamic Active AI-Based Stabilization
• 10-Bit 4:2:2 XAVC S-I, 16-Bit Raw Output
• S-Cinetone/S-Log3/HLG, 15+ Stops DR
• 3.68m-Dot 0.7x OLED EVF with 90° Tilt
• CFexpress Type A & SD Card Slots
• 2.4/5 GHz Wi-Fi for 4K Live Streaming

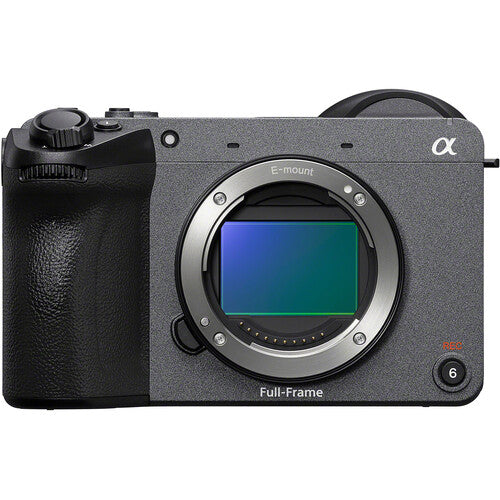

Pairing its 33MP back-illuminated Exmor R sensor with a BIONZ XR processor, the FX2 captures vivid 4K video with natural gradations, realistic color, and low noise in both full-frame and Super 35 modes, providing wide lens compatibility without sacrificing resolution. In full-frame mode, the FX2 records 4K30 video with 7K oversampling and full pixel readout for exceptional sharpness and realism. Maximum frame rate at 4K resolution increases to 60 fps when shooting in Super 35 mode. Designed to tackle diverse lighting scenarios, the FX2 features a dynamic range greater than 15 stops, an ISO expandable up to 204800, and updated dual-base ISO technology for capturing footage in S-log3 at 800 or 4000 ISO.

DCI 4K Video Recording

Designed for flexibility, the FX2 shoots DCI 4K footage internally with 10-bit 4:2:2 sampling or outputs 16-bit raw video via an HDMI connection. Capture video in XAVS S, S-I, and HS recording formats in Long GOP, All-Intra, H.264, and H.265 codecs. Color and tone reproduction can be tailored with precision using up to 16 user-imported LUTs or S-Cinematone mode for matching VENICE, FX9, FX6, FX3, and other camera sources. The FX2 features an intuitive Variable FPS setting for creating time-lapses and slow-motion video, and it can de-squeeze 1.3 and 2.0x anamorphic footage, all in-camera.

Hybrid Still Image Capture

The FX2 brings the versatility of a hybrid camera to the Cinema Line, improving still-image capture and adding features such as Log shooting and user-LUT application.

• Built-in toggle to switch from movie to still mode
• Shoot 33MP JPG or HEIF images in S-Log3 for streamlined color grading
• Capture photos from shot marks during internal video recording or playback
• Apply previously imported user LUTs to captured still images
• Flex or base ISO settings and S-Gamut3 or S-Gamut3.Cine color spaces

AI Subject Recognition

The FX2's AI processing unit delivers multiple improvements in autofocus, auto framing, and stabilization using deep learning. Analyzing colors, patterns, and depth, the processor maintains sharp focus with real-time subject recognition, identifying people, animals, and vehicles. Human and animal eye recognition is improved by 30% compared to the FX3 and FX30, making the FX2 ideal for fast-paced shooting scenarios, such as capturing wildlife and sporting events. This advanced tracking ability also allows for precise auto framing, adjusting the recorded composition to keep a subject center-frame.

Comprehensive Stabilization

Combining in-body optical image stabilization with AI processing power and E-mount lens metadata for post-production, the FX2 offers an array of ways to eliminate camera shake during handheld shooting.

• 5-axis in-body optical image stabilization
• Dynamic Active Mode for stable handheld shooting
• Framing stabilizer uses advanced AI
• Shake metadata is embedded into footage for post-production

Improved Accessibility

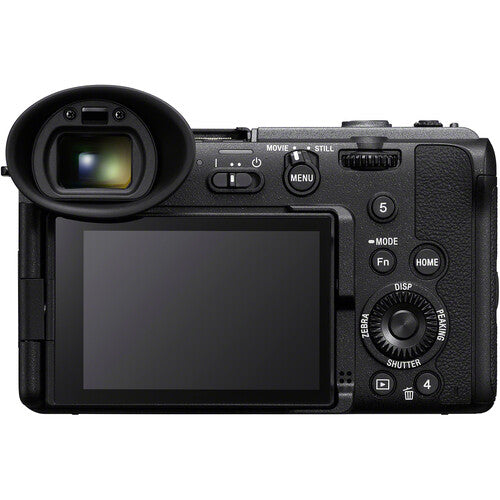

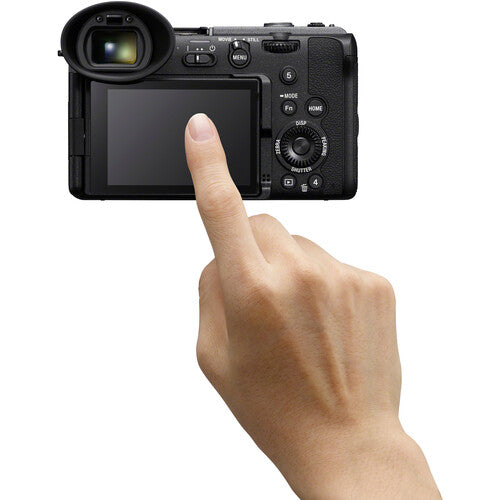

Inheriting the BIG6 home screen from high-end CineAlta cameras such as the VENICE, the FX2 allows easy adjustments to FPS, ISO, shutter angle, aperture, look, and white balance when set in Movie Mode. The 3" fold-out touchscreen LCD provides intuitive menu navigation and sports a tiltable design and 1.03m-dot resolution. Unique to the FX2 is a built-in 3.68m-dot OLED electronic viewfinder with a 0.7x maximum magnification. Tilting from 0 to 90°, the EVF has a reversible rubber eyecup and 33mm eye point, allowing pinpoint framing in extreme lighting conditions.

Connectivity & Compatibility

The FX2 features expansive connectivity, with multiple options for power input, internal video recording, data output, and both wireless and USB streaming.

• USB-C port for PD fast charging or LAN link using a gigabit Ethernet adapter
• Stream at 2.4/5 GHz over Wi-Fi, or 5 GB/s via USB-C connection

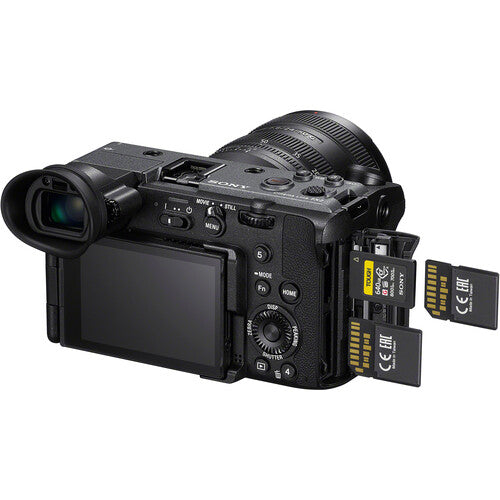

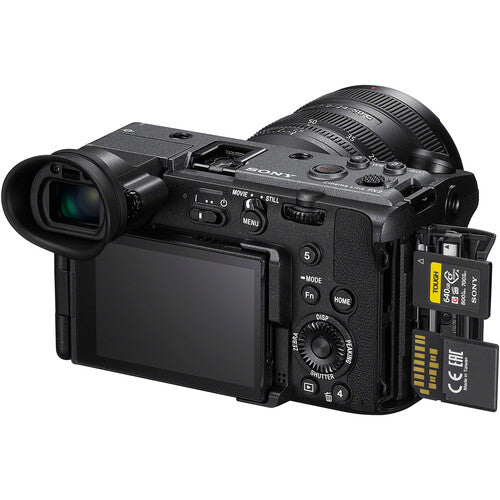

• One CFexpress Type A/SDXC card slot, one SD card slot, and one HDMI port

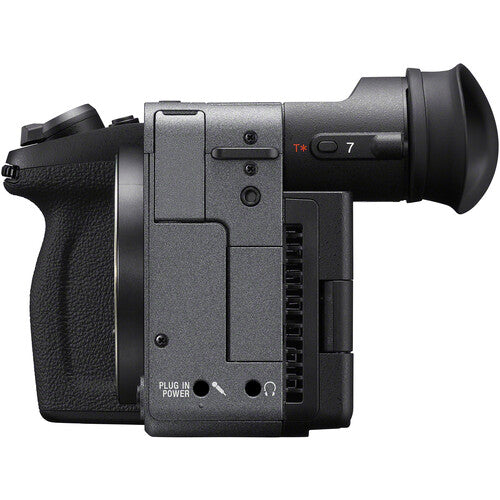

• Multi-interface hot shoe, micro-USB port, and 3.5mm mic and headphone jacks
• Compatible with XLR-H1 Handle Unit for expanded control and audio options

Ergonomic Design

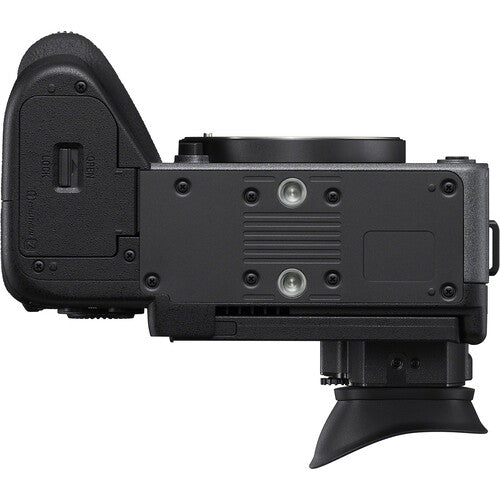

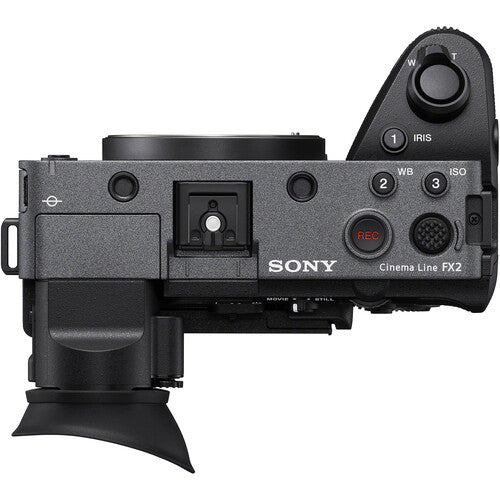

Built from lightweight, sturdy Magnesium alloy, the FX2 has an updated heat-dissipating structure and built-in cooling fan, ensuring uninterrupted 4K60 recording. The improved handgrip holds a single 16.4Wh NP-FZ100 battery and sports one of the camera's five 1/4"-20 female threads—three for accessories and two for mounting plates. Several functions have dedicated controls, including the power switch, record button, movie/still switch, zoom lever, playback button, and control dials, while seven other buttons serve user-assignable functions.

Improved FX2 Attributes

• Full-frame, back-illuminated 33MP effective Exmor R CMOS sensor
• Shoot still images in S-Log3 for flexible color grading in post-production
• AI-powered AF, framing, and active dynamic image stabilization
• 7K oversampling in full-frame mode and 4K resolution in Super 35 mode
• Dual-base 800/4000 ISO during S-Log3 shooting
• Extract stills during video recording or playback and apply user LUTs
• 3.68m-dot 0.7x OLED electronic viewfinder with 0 to 90° tilt

Common FX2/FX3 Attributes

• 10-bit 4:2:2 internal recording or 16-bit raw output via HDMI
• S-Cinetone, S-Log3, HLG, and Rec. 709 gamma options
• BIONZ XR processing engine
• A dynamic range of 15+ stops
• Compact design for cage-free operation
