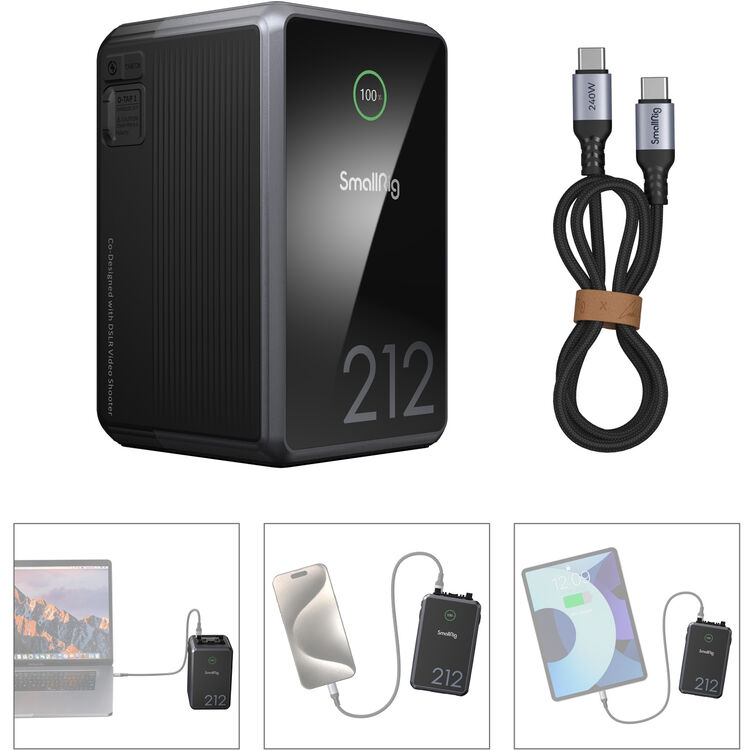

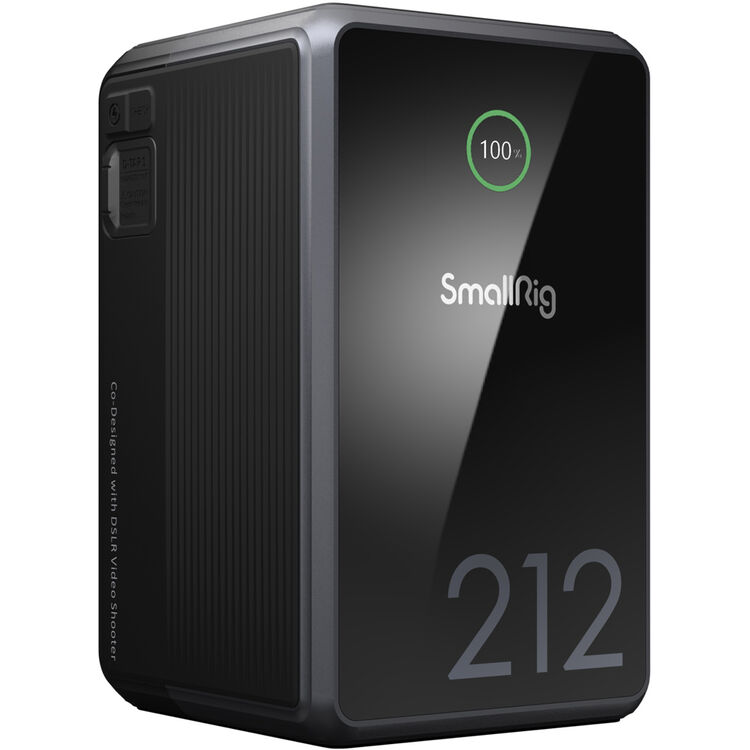

SmallRig x Caleb Pike VB212 mini V Mount Battery 4293

SmallRig VB212 Overview

Key Features

• 212Wh Lithium-Ion V-Mount Battery
• Supports up to 10A Draw
• 2 x 14.8V D-Tap Outputs
• USB-C Outputs, 2 x DC Barrel Outputs
• USB-C Input/Output
• USB-C Fast PD Charging up to 140W
• Ultracompact, Travel-Friendly Size

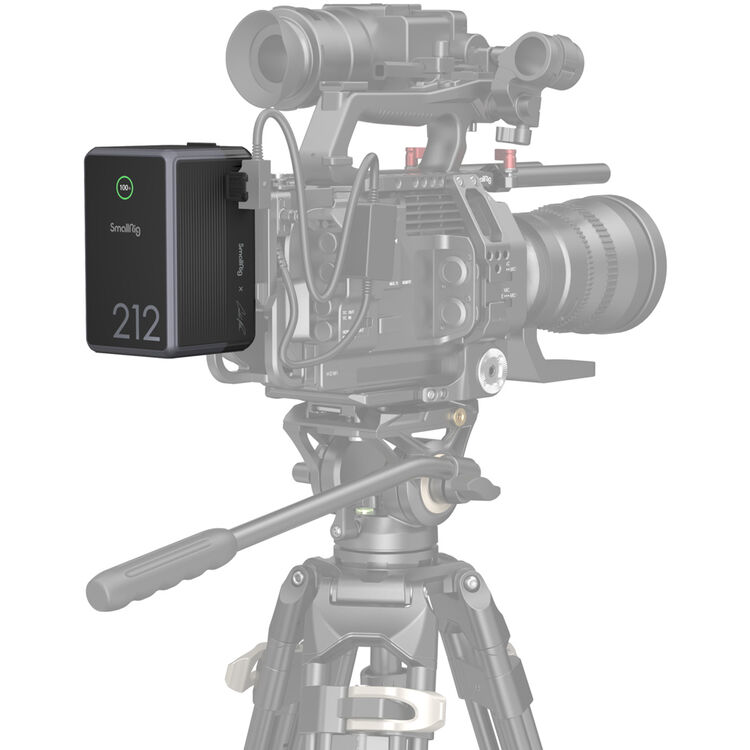

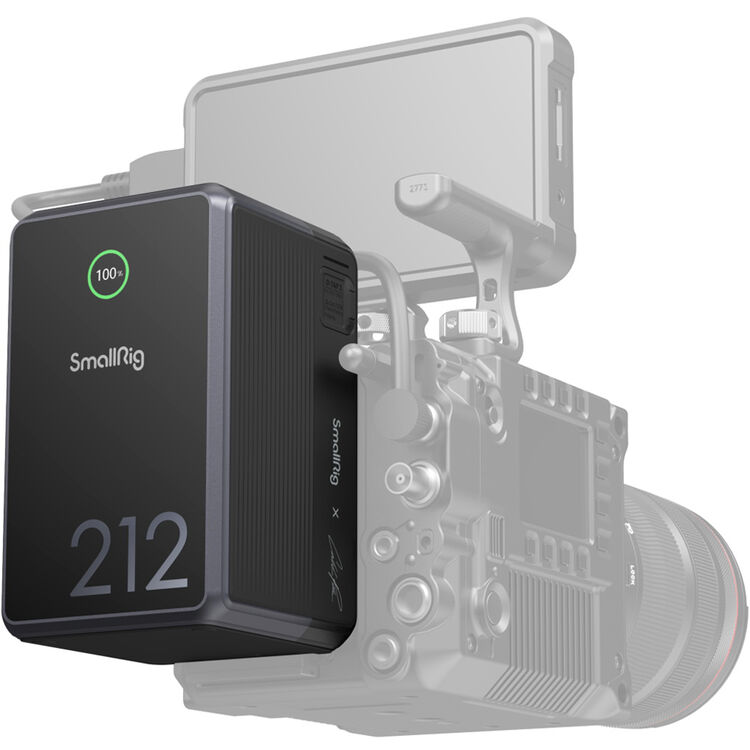

The SmallRig x Caleb Pike VB212 Mini V-Mount Battery is an ultracompact, lightweight 212Wh capacity battery that can support up to a 10A draw with a nominal 14.76V output. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.

The VB212 provides multiple accessory ports, including one 14.8V D-tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-tap charger, or via the USB-C input/output with a PD fast charger. A built-in bright OLED display shows the remaining battery capacity and status.

Note:

Always check with your airline, as battery regulations may change.

Features

• Intelligent BMS chip supports 140W (max) fast charging; fully charged in 2.5 hours
• High-capacity LG battery cell endures repeated charging and discharging; safe and stable
• Highly integrated design, ultracompact, and travel friendly

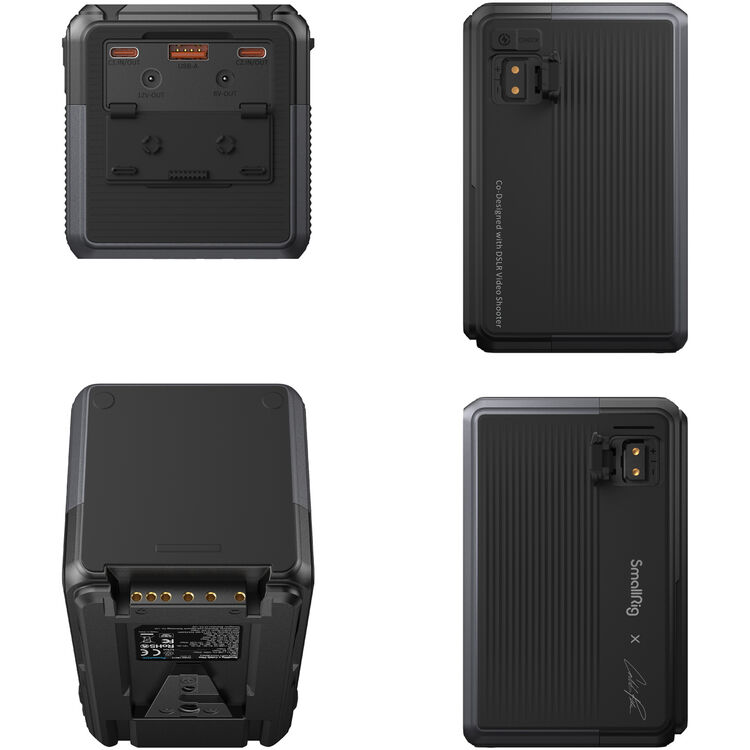

• Multiple interfaces: Two USB-C ports, two D-tap ports, a USB-A port, an 8 VDC barrel output, and a 12 VDC barrel output
• Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
• Aluminum, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside make the battery robust, drop proof, heat resistant, and flame retardant
• Durable, scratch-resistant plastic and acrylic front cover
• TFT display shows battery status clearly and accurately

Charging Protocols

• V-mount: 14.76V, 19A (max.)
• D-tap 1 : 14.76V, 10A (max.)
• D-tap 2: 14.76V, 6A (max.)
• 8V output: 8V, 3A (max.)
• 12V output: 12V, 3A (max.)
• USB-C1 / USB-C2 PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
• USB-A QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
