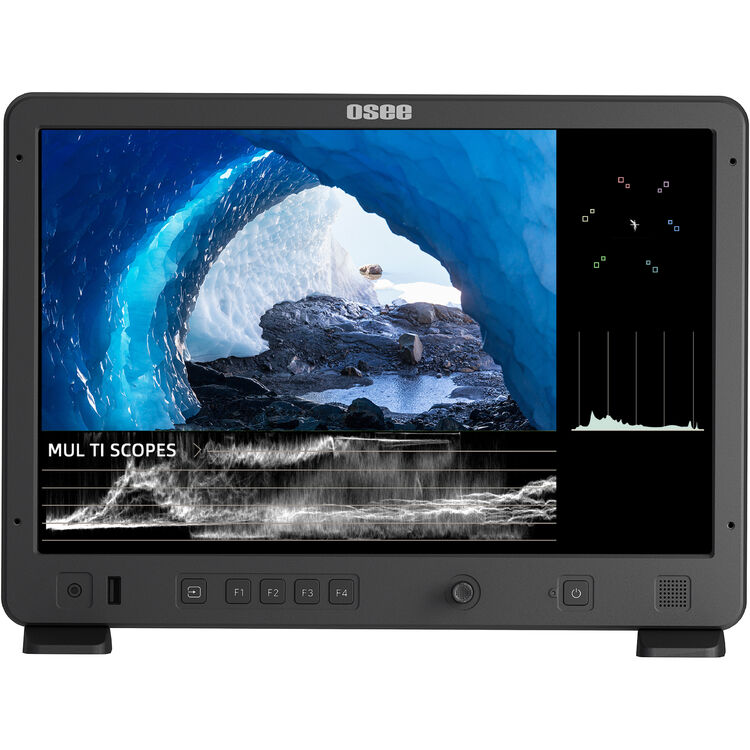

OSEE Mega 15S KIT Field & Production Monitors

OSEE MEGA 15S Overview

Key Features

• 15.4" 10-Bit Production Display
• HDMI, 3G-SDI, Analog BNC Input
• 1500 cd/m² Brightness
• Includes Gold Mount Battery Plate
• 3D LUTs, Multiple Imaging Tools
• Self Calibrating
• Antireflective AR Coating
• Includes C-Stand Adapter and Soft Case

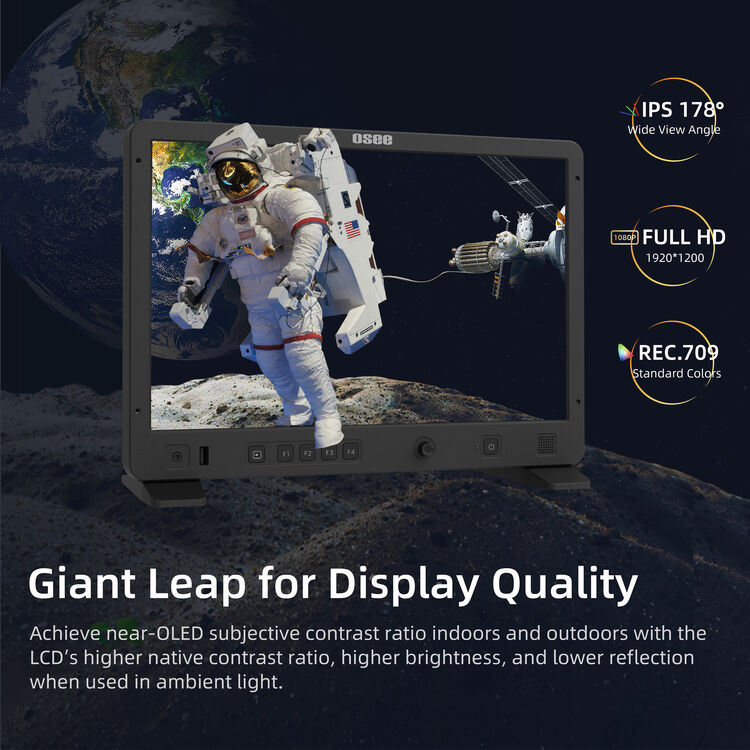

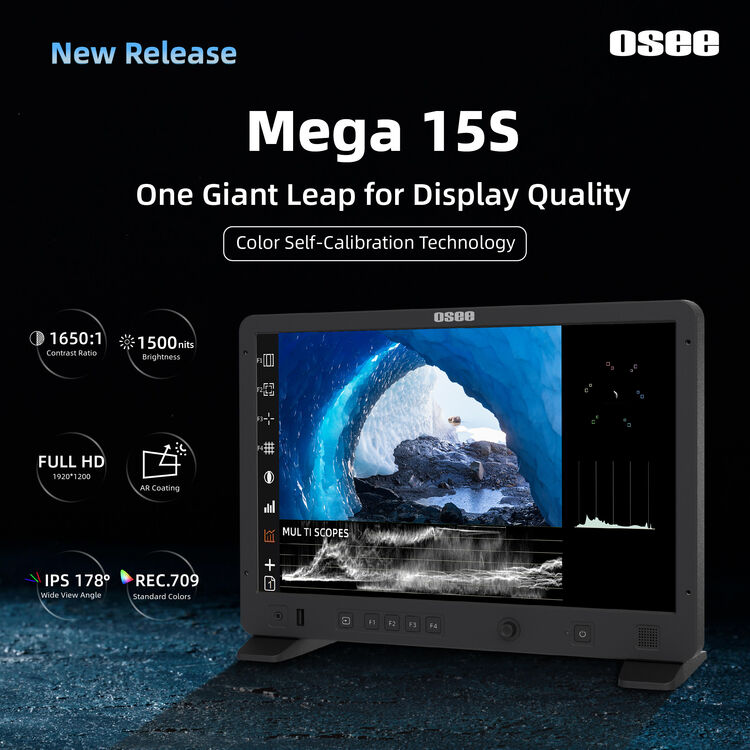

High-Bright Production Monitor

The OSEE 15.4" Ultra-Bright HDR Field Production Monitor is a bright 1500 cd/m² 1920 x 1200 display packed with built-in monitoring tools. Whether you prefer to use histograms, waveforms, false colors, or zebras, the OSEE field monitor has the right tool to help you nail the optimal exposure.

Customizable Viewing

• This monitor also supports anamorphic de-squeeze and custom frame guides for anamorphic shooters, and it can store up to 10 custom 3D LUTs.

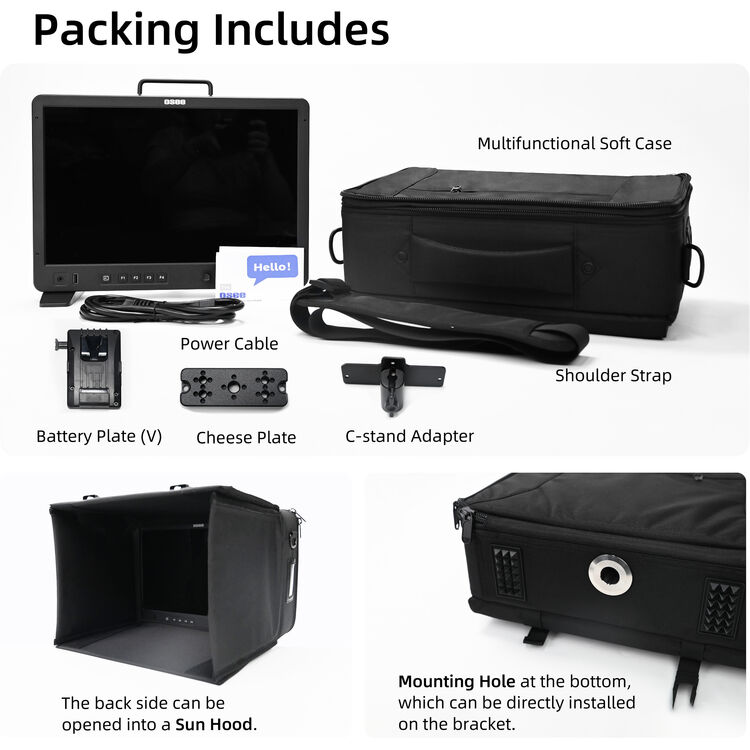

• Packaged with a carry case with a sun hood, C-stand mount, and Gold mount battery plate, the Osee production monitor is ready to go in just about any production environment.

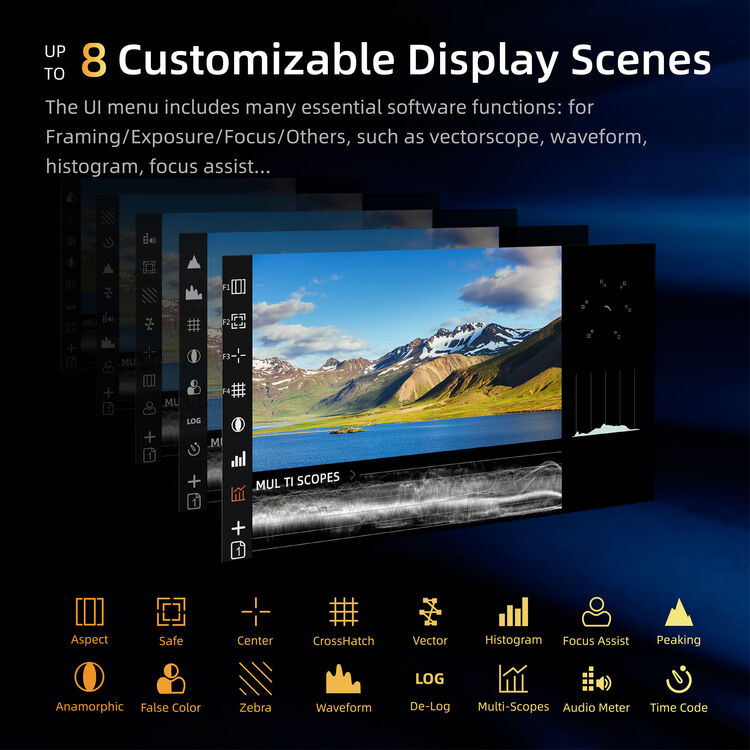

• Save up to eight customizable scene presets.

Multiple Video Inputs and Outputs

• One HDMI input
• Two 3G-SDI inputs
• Two 3G-SDI loop outputs

Exposure Tools

• False color
• Zebra
• Histogram
• Vectorscope
• Waveform

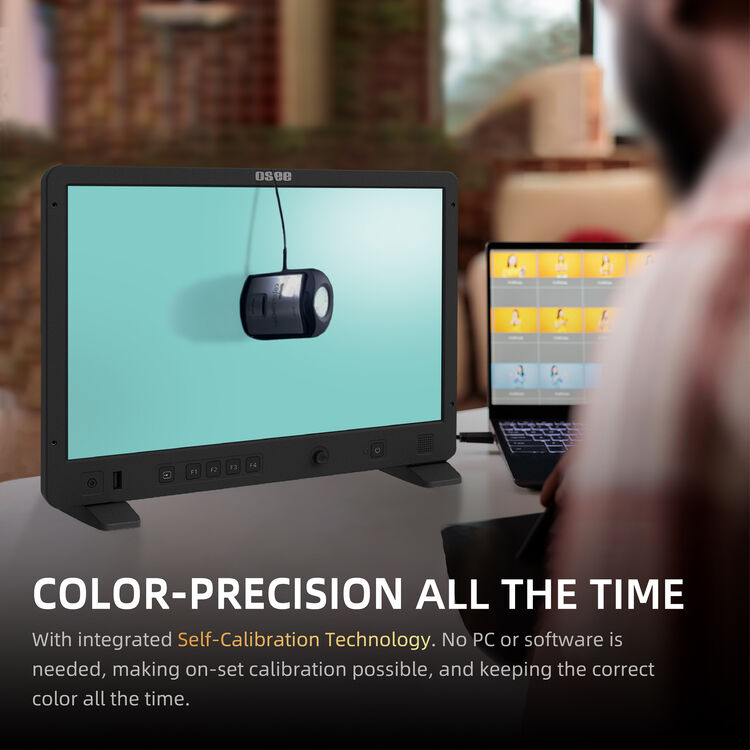

Self Calibrating

• Self-calibration technology ensures that you get the most accurate display colors.
• This monitor uses the Rec. 709 color gamut.

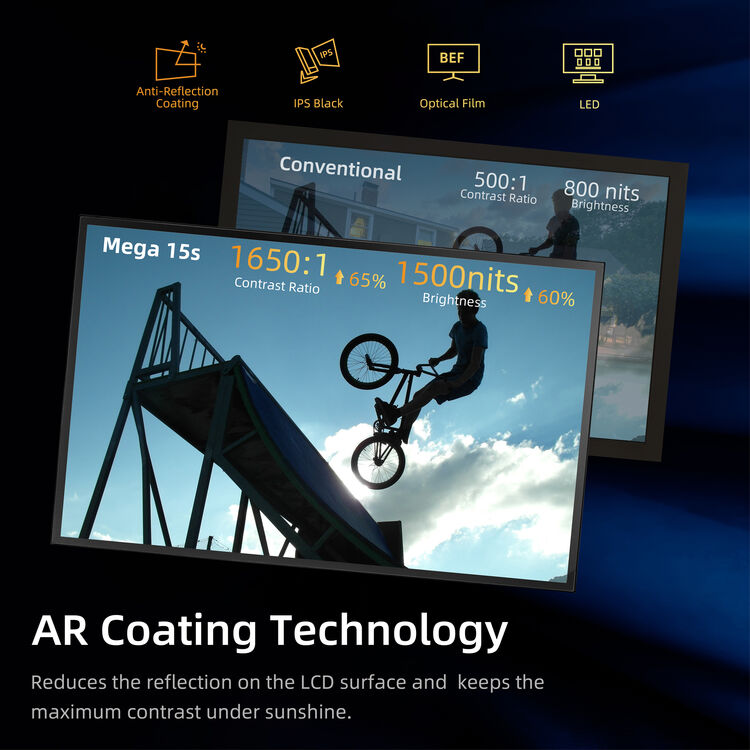

• The AR coating reduces reflections while maintaining maximum contrast in daylight.

Framing Tools

• Anamorphic de-squeeze
• Custom aspect ratios
• Safe area marker
• Center/crosshatch markers

Focus Tools

• Focus assist
• Peaking

Power Options

• 4-pin XLR, 11-17 VDC input (power cable not included)
• Gold mount battery plate

Camera Log

• The monitor supports up to 10 custom user 3D LUTs via the USB-A port, as well as multiple Log standards:Standard Log: 2.2, 2.4, HLG, PQ
• ARRI Log C
• BMD Film, 4K Film, 4.6K Film
• Canon CLog, CLog2, CLog3
• Fuji F-Log
• Nikon N-Log
• Panasonic V-Log
• RED Log3G12, Lgo3 G10, REDLogfilm
• Sony S-Log, S-Log 2, S-Log 3
• DCI 2.6

Miscellaneous Tools

• DeLog
• Multi-scope display
• Display rotate
• Audio meter (only SDI)
• Timecode (only SDI)
