OSEE G7 Pro 7" Touchscreen HDMI/SDI Field Monitor with Camera Control

OSEE G7 Pro Overview

Key Features

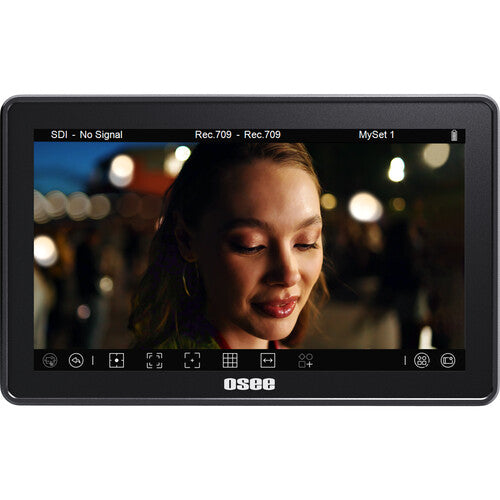

• 1920 x 1080 Touchscreen Display
• Input up to 4K via HDMI & 2K via 3G-SDI
• USB-C Port for Camera Control
• Input 3D LUTs via SD Card Slot
• 3000 cd/m² Brightness, 1300:1 Contrast
• Power via USB-C PD, L-Series, DC Input

Add a powerful, compact field monitor to your rig with the G7 Pro 7" Touchscreen HDMI/SDI Field Monitor with Camera Control from OSEE. The G7 Pro on-camera monitor features a 7" touchscreen with a 1920 x 1080 display and 3000 cd/m² brightness. The monitor features 3G-SDI input up to 2K and HDMI input up to UHD 4K, and both inputs also feature a loop output.

Camera Control

The G7 Pro is equipped with a USB-C port and firmware that allow you to control select cameras, providing controls such as ISO, shutter, record, focus, aperture, and more. It is currently compatible with the following cameras:

• Canon EOS R6, R6 II, 5D Mark IV
• Panasonic LUMIX GH5S, GH6, S5, S5 II, S5 II X
• Sony a7 IV, a6400, ZV-E10 Mark II, FX3
• Z CAM E2, E2C
• Nikon Z9, Z6 II, Z6
• FUJIFILM GFX100 II, X-T5, X-S20

Input/Output

The monitor features HDMI and 3G-SDI inputs, as well as HDMI and 3G-SDI loop outputs.The HDMI input and output support up to DCI/UHD 4K30 resolutions, and the 3G-SDI input and output support up to 2K/HD resolutions.

Color and Brightness

The high-bright touchscreen display features 3000 cd/m² brightness, allowing you to view accurate imagery indoors or outdoors in bright sunlight. The G7 Pro supports 10-bit color depth and features a 1300:1 contrast ratio.

Power Options

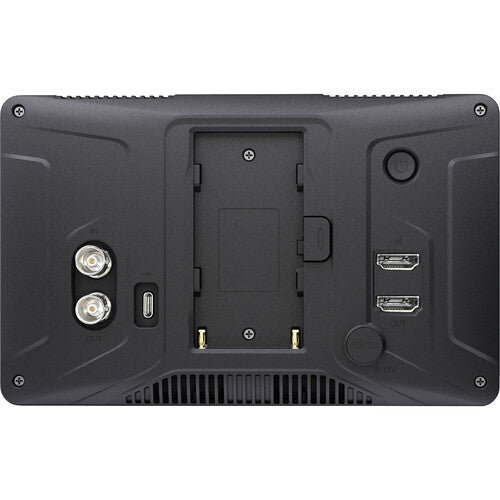

You can power the monitor using the rear L-series/NP-F battery plate with a separately available battery. You can also choose to power via an optional power adapter or pro battery using the included D-Tap to DC barrel cable.There is also a USB-C PD input that allows you to power via a separately available PD charger.

3D LUT / Camera Log Support

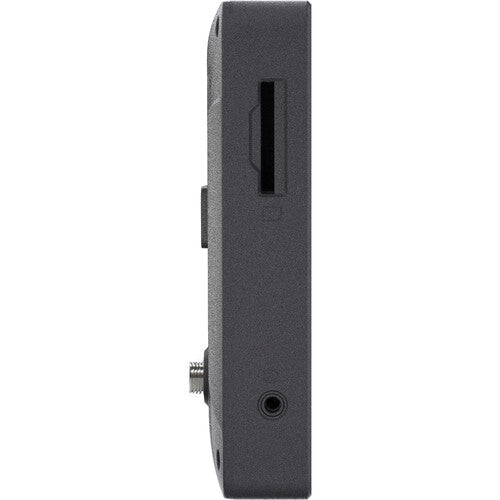

Numerous 3D LUTs and camera Log files are preinstalled for common camera profiles, and you can also upload up to 10 custom 3D LUTs via the SD card slot.The monitor includes multiple standard LUTs and camera Log files, including HLG, standard Log, ARRI Log-C, Blackmagic 4K/6K Film, Canon Log-C/Log2/Log3, Fuji F-Log, Nikon N-Log, Panasonic V-Log, RED Log3G23/G10/Film, and Sony S-Log/S-Log 3.

Built-In Imaging Tools

There are numerous built-in imaging tools, including aspect, safe area, markers, anamorphic, false color, waveform, vectorscopes, histogram, focus assist, scopes, timecode, audio meter, rotate display, and more.

Rugged Design

The camera's touchscreen is made from durable silicate glass that withstands impact and scratch damage. The chassis is made from durable, lightweight aluminum that provides protection in any production environment.The chassis is built to withstand extreme environmental changes, and a silent fan with an automatic sensor is built in to provide additional cooling.
