FeelWorld F6 Plus V2 6 inch 4K HDMI LUT Monitor

FeelWorld F6 Plus V2 6 inch 4K HDMI LUT Monitor

Key Features

* Support 3D LUT Log to Rec.709, user 3D LUT Upload

* Support Touch Menu

* High Resolution: Full HD 1920x1080, High Contrast: 1000:1

* 160° wide viewing angles IPS Panel

* Provides auxiliary power out; allowing shooters to power their cameras

* Support HDR monitoring

* Parade (RGB, YUV, Y)

* VectorScope

* Histogram

* Support screenshot, image overlay

* Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)

* False Colors

* Zebra Exposure (1%~100% adjustable)

* Scan Mode (Under Scan, Over Scan)

* Zoom (100%~300%)

* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)

* Pixel to Pixel

* Nine Grid

* Center Marker

* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)

* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)

* Marker Color (red, green, blue, white, black, yellow)

* Check Field (red, green, blue, gray)

* Image Flip (H, V, H/V)

* Image Freeze

* Color Temperature Adjustment

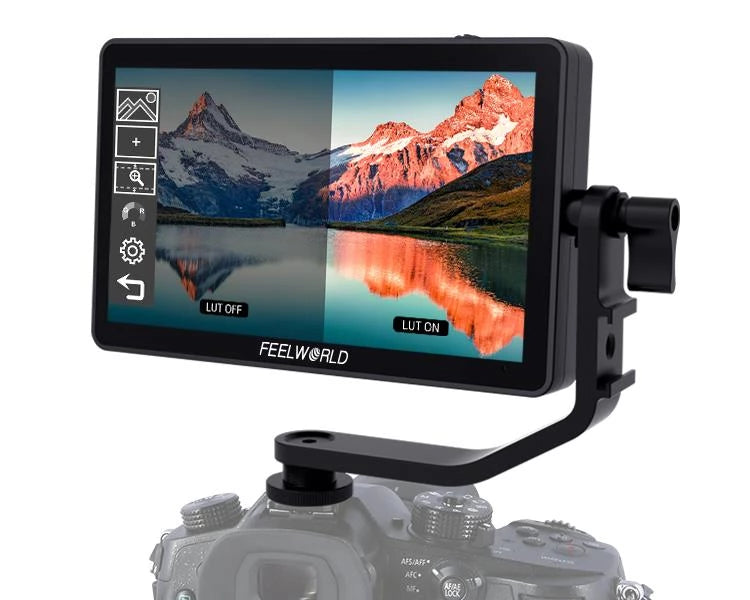

User LUT Cube Import

F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

Waveform

This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope

Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Brightness Histogram

The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

All Scopes Mode

This mode shrinks your video image to approximately the size of a 5.5" display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.

Audio Meter Monitoring

The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Below -18dB column shows green; -18dB~-08dB column shows yellow; above -08dB shows red.

Peaking Focus Assist

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.

False Color

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure (zebras)

The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. There is a 1%-100% zebra value that can be adjusted.

Check Field

Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or gray pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Zoom In (100%～300%)

Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.

Anamorphic Mode

Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 2.0x or 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.

Image Flip

Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
