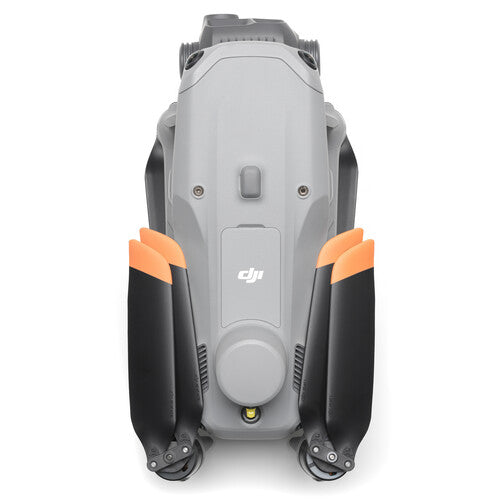

DJI Matrice 4 Thermal

DJI Matrice 4T Overview

Key Features

• 3-Axis Gimbal with Multi-Camera System
• 48MP Wide-Angle Camera
• 48MP Medium Tele & Telephoto Camera
• Thermal Camera, NIR Light & Rangefinder
• Four Intelligent Flight Modes
• Low-Light Flying with Night Scene Mode
• Multidirectional Surveying/Mapping
• O4 Transmission up to 15.5 Miles
• Open Developer Support

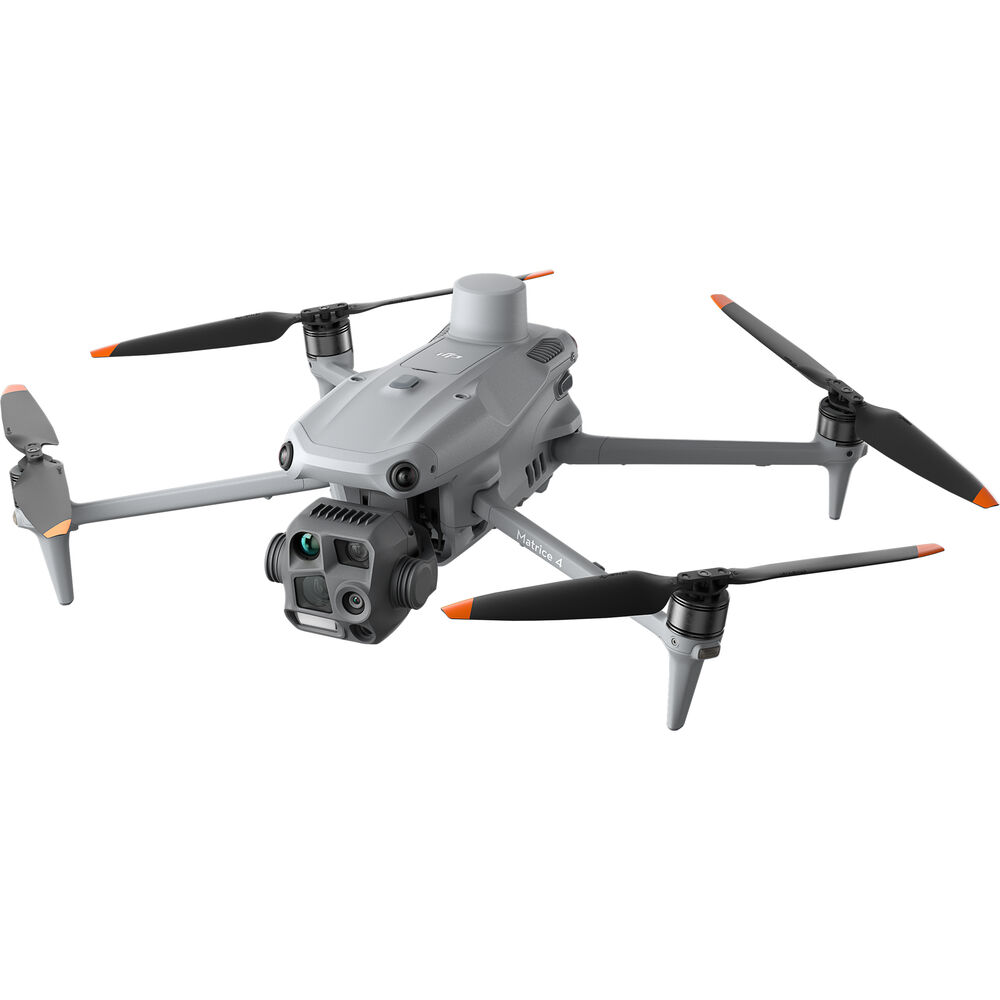

Search and rescue, surveying, and infrastructure inspection are just a few of the enterprise industries in which the DJI Matrice 4T Drone is designed to excel. At the core of the drone's abilities is a four-camera system with a laser rangefinder. Specifically, the system is made up of wide-angle, medium telephoto, standard telephoto, and infrared thermal lenses. As it flies, a variety of smart features make piloting easier with robust subject tracking and automated flight. In addition to standard drone operation, its large apertures, full-color night vision, and additional features help to make the Matrice 4T an ideal solution for low-light and night flying. Whatever the mission, omnidirectional obstacle avoidance and other features ensure safe and worry-free operation.

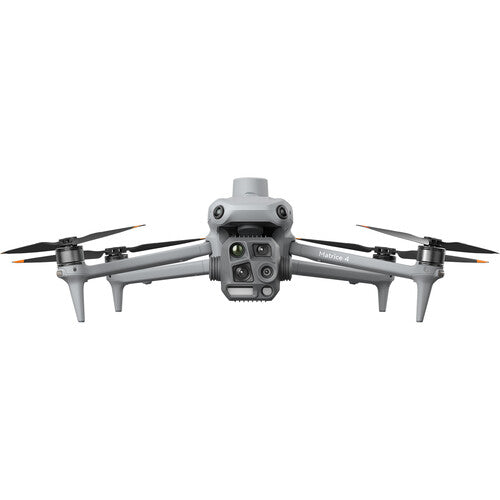

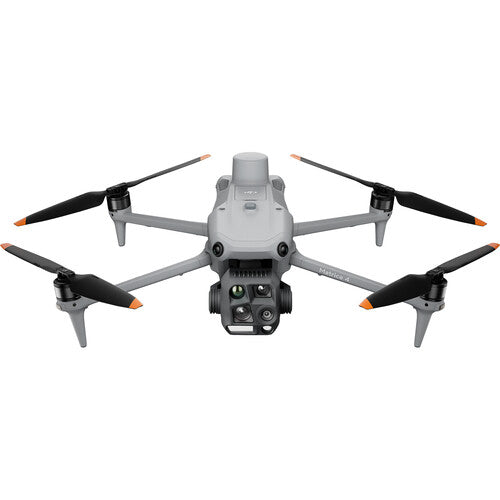

Multicamera System

Search and rescue, mapping, 3D modeling, and more can be done by the multicamera system that's part of the Matrice 4T's 3-axis gimbal. You get 48MP wide-angle, medium telephoto, and telephoto lenses, in addition to an infrared thermal lens for detecting -4 to 1022°F heat signatures. Rounding out the system is an NIR auxiliary light, which can provide improved low-light performance at distances up to 328'.

Laser Rangefinder

With a range of up to 1.1 miles, the integrated laser rangefinder is a useful tool for measuring the distance between the drone and specific objects and calculating an entire area. Distant objects can be measured via pinpoint or line drawing, while area calculation utilizes observation range recording. Using DJI Pilot 2 software, the center of a camera frame is highlighted, along with observed areas. This can help to see which areas have already been covered during a search. These precise measurements are done in real time and can be shared with other personnel for collaboration using a DJI Pilot QR code or through DJI FlightHub 2.

Intelligent Flight Modes

• Cruise: This mode makes it easier to fly over long distances. Like the cruise control in your car, set this to have the drone fly forward without having to press on the control sticks.
• FlyTo: Specify a location and the Matrice 4T will automatically adjust its flight path and speed to reach the target.
• Smart Track: Switch between precisely tracking multiple subjects with automatic zoom to keep them in frame. Subjects can even be reacquired if briefly obscured.
• POI: Select a point of interest to have the Matrice 4T fly around while continuously observing and 3D modeling buildings in the area.

Surveying

• The Matrice 4T is ideally suited for enterprise surveying and mapping operations. The wide-angle lens can capture images in rapid 0.5-second intervals, using orthophoto and oblique modes to accurately map an area, all while flying up to 47 mph. Under 3-Directional Ortho Capture, lateral image capture is done while performing ortho collection tasks to reduce lateral overlap. This allows for the mapping of an area of up to 1.08 square miles. Under 5-Directional Oblique Capture, the gimbal intelligently rotates to shoot at multiple angles based on the area size. This makes single flight much more efficient. Additional features and reporting further help to optimize surveying and model mapping.Smart 3D Capture: Capture and create rough models of structures right on the remote controller screen. From this, more precise mapping routes can be created to get closer and capture more detail. This feature will also display virtual routers and waypoint photos to assess flight safety and the coverage area.
• Distortion Correction 2.0: The wide-angle camera is factory calibrated to work with DJI Terra for accurate model reconstruction. This feature delivers precise in-camera distortion correction, leaving residual distortion of less than two pixels.
• Auto-Generated Surveying Operation Report: Use DJI Pilot 2 to automatically generate a survey quality report after a mission. You'll get key information, such as photo points, RTK status, and photo parameters. With this immediate information, you can address any anomalies on the same trip by taking additional photos.

Low-Light Flying

For certain enterprise missions, such as search and rescue, it can be difficult to locate subjects from dusk to night. This is why the Matrice 4T's camera system features wide apertures to improve low-light imaging, in addition to DJI's Night Scene mode. Equipped with an IR Cut filter, this mode provides full-color night vision with three modes and two levels of noise reduction to boost quality even further. The Matrice 4T takes this a step further with its infrared thermal capabilities and NIR auxiliary light. Use Thermal Imaging to easily pick out people and animals in the dark, and use the NIR light to better visibility at distances up to 328'. As you fly, six HD low-light fisheye vision sensors provide automatic obstacle avoidance, intelligent rerouting, and safe returns to home for maximized mission success.

Long-Range Transmission

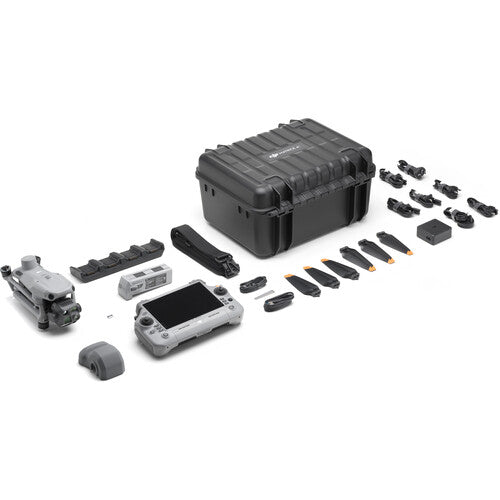

Using the included RC Plus 2 remote controller, drone control and live video feed can be sent successfully from up to 15.5 miles away. This is due to the O4 Enterprise transmission system, the Matrice 4T's eight-antenna system, and RC Plus 2's high-gain antenna. This system even supports fast image transfer with download speeds of up to 20 MB/s.

Safe and Worry-Free Flight

An integrated RTK module supports the extended L5 frequency band, which works with GNSS and DJI's Vision Fusion Positioning and Navigation System to return the Matrice 4T home safely by using visual positioning updates. This five-directional vision assist system and downward vision sensor also allows for rapid takeoff within just 15 seconds, and return to home in areas lacking a GNSS signal.On top of the return-to-home feature is general obstacle avoidance. Use the Matrice 4T's map-based guidance feature to enhance that by connecting the RC Plus 2 Enterprise remote to the internet. With that connection, you can load terrain elevation and area maps to help with more precise avoidance and automatic route planning. An excellent feature for flying at night or in mountainous regions.

Software Support

Matrice 4T is made to work with DJI Pilot 2, FlightHub 2, Terra, Modify, and DTAT 3.0. These applications provide piloting, route planning, mapping, 3D modeling, sharing, and much more.

Open Development

Institutions, organizations, and agencies can have very specific needs when it comes to drone usage. This is why DJI allows the Matrice 4T to support open development. Developers can enhance the drone's capabilities through the use of Intelligent Algorithm Developer, PSDK, MSDK, Cloud API, and DJI Terra API.

Data Security

Enterprise-level drones can be involved with highly sensitive data acquisition, which is why DJI offers Local Data Mode and the ability to clear all data with a single tap. AES-256 video transmission encryption and Cloud API are also offered to keep information secure.
