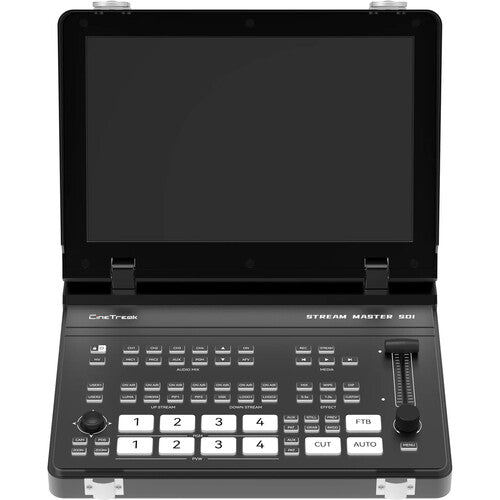

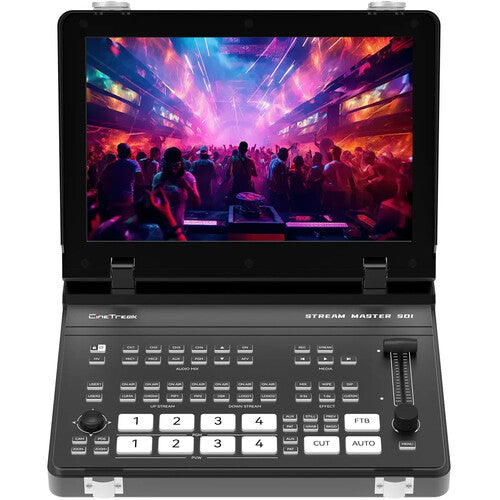

Cinetreak Stream Master SDI Video Switcher ( 4* HDMI / 4*SDI )

CineTreak Stream Master SDI Overview

Key Features

• All-in-One Live Streaming Switcher
• Foldable 10" HD Screen

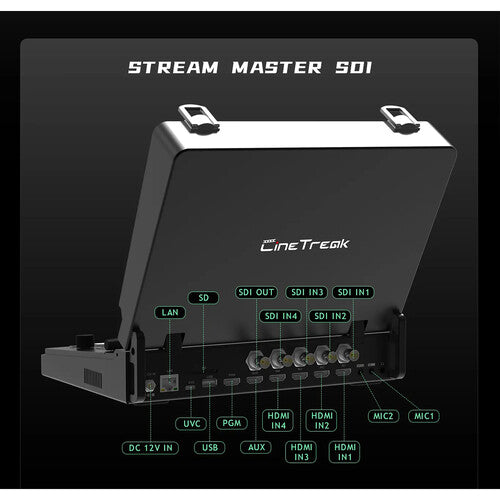

• 4 HDMI & 4 SDI Inputs
• 1 HDMI PGM & 1 SDI AUX Outputs
• Controls up to 4 PTZ Cameras via VISCA
• Wireless IP Control
• Record HD Files for Instant Playback
• Downstreaming Support
• Dual RTMP Streaming Destinations
• Landscape & Portrait Mode

Professional broadcast and content creators can enhance their productions with intuitive multicamera switching using the Stream Master SDI Video Switcher from CineTreak. The versatile, all-in-one live streaming switcher is equipped with four HDMI inputs, four SDI inputs, one HDMI PGM output, and one SDI AUX output. Boasting powerful recording and playback capabilities, the unit offers downstreaming capabilities that allow for additional content to be handled from an online streaming code and an SD card. The Stream Master SDI integrates a foldable 10" screen and has a customized Meeting mode that allows users to display up to four image windows at the same time.

The switcher records high bit rate Full HD files for regular and instantaneous playback, making it ideal for various applications in professional live production. Built-in PTZ camera control provides connectivity for up to four cameras using the VISCA protocol, and landscape and portrait modes allow for quick switching between 16:9 and 9:16 aspect ratios.

Picture-in-Picture and Picture-over-Picture (PiP/PoP) functionality is customizable and facilitates integration with luma and chroma-keying applications for virtual studio environments. The unit can simultaneously stream to two different RTMP destinations, while wireless IP control makes it possible to control the switcher from a computer, smartphone, or iPad. A 12V, 2A power adapter and a USB-A 3.0 cable are included.

Downstream/Upstream Support and IP Control

Downstream and upstream functionality allows the use of web video sources like YouTube, Netflix, and Twitch, making the switcher a convenient multimedia platform across regions and distances.

Customized PoP and Dual PiP for Viewing Flexibility

Augmented with customized PoP (Picture-over-Picture) and dual PiP (Picture-in-Picture), the switcher allows you to customize the size and position of each screen, as well as zoom and free cropping to meet a wide range of application requirements across various scenarios.

Powerful DSK Functionality for Rich Visual Effects

Luma- and chroma-keying provide flexibility for subtitle and logo overlays, real-time subtitle display, and rich visual effects to enhance the viewer's experience.

External USB and SD Card Recording

The SD card slot and USB-A interface allow the direct recording of the program (PGM) output with support for up to 32 Mb/s encoding in MJPEG file format.

RTMP Streaming to Two Destinations

A USB-C port for UVC connectivity allows the switcher to operate in webcam mode, sending video and audio to a computer for live broadcasts to a variety of platforms, including OBS, vMix, Teams, Twitch, YouTube, Skype, VLC, and more. The integrated stream engine enables live streaming to two destinations simultaneously via an Ethernet connection without needing to connect to a computer.
