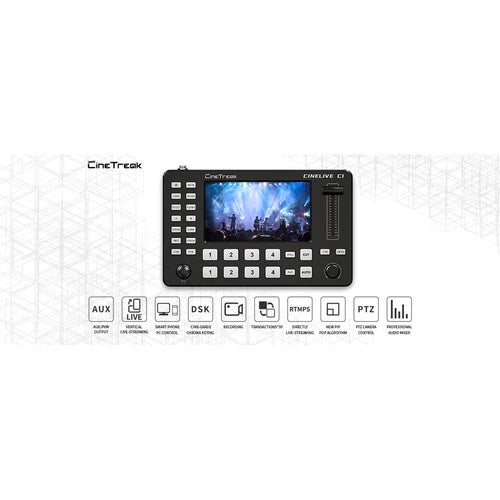

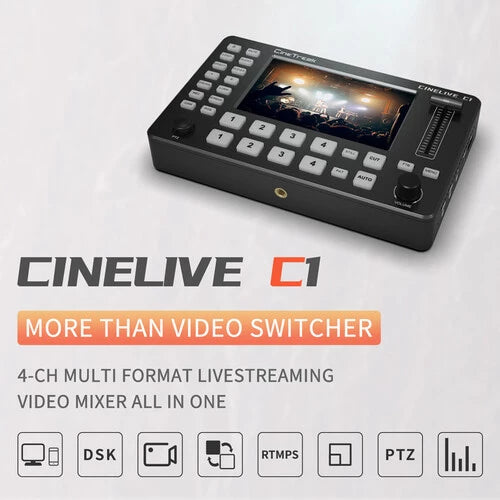

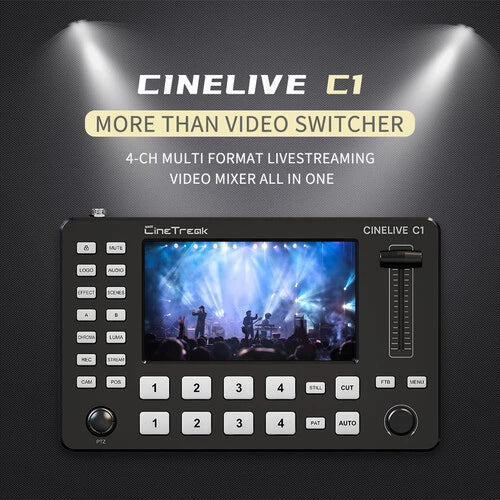

CineTreak CINELIVE C1 Overview
Key Features
- 4 x HDMI Inputs, 2 x HDMI Outputs
- Multi RTMP Livestreaming via USB-C & LAN
- Supports Up to 1080p60 Video
- Luma & Chromakey, LOGO, PiP and PoP
- H.264 Encoding with 2-Ch Audio
- VISCA Control for up to 4 x PTZ Cameras
- USB-A Recording, Tally Port
- 2 x 3.5mm Mic/Line Audio Inputs
Use the CineLive CL-C1 Compact 4-Channel HDMI Switcher from CineTreak to mix and live stream up to 1080p60 video and embedded audio. This compact switcher provides four HDMI inputs, one LAN port, one USB-C UVC output, two 3.5mm audio inputs, two HDMI program outputs, and USB-A external recording. The CL-C1 switcher supports up to two simultaneous RTMP streams of 1080p60 video to popular platforms using its USB-C and LAN ports. It features H.264 encoding, luma and chromakeying, 32 transition effects, and VISCA control for up to four PTZ cameras.
Applications
This 4-channel HDMI switcher is ideal for sports, HoW (house of worship), virtual studio, gaming, meetings, and telemedicine usage.
4-Channel Video Switcher

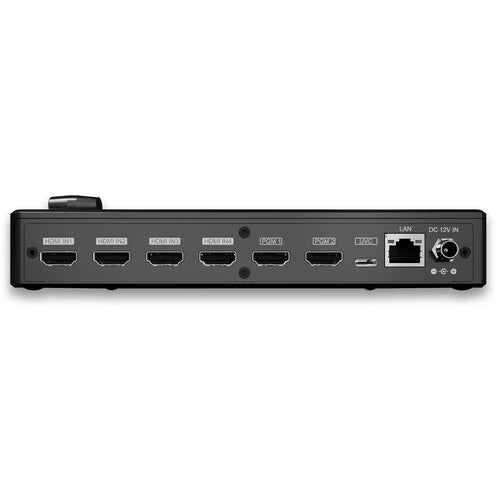

- Input video via four HDMI ports and output via two HDMI program outputs, one UVC output, and one RJ45 LAN port.
- Luma and chromakeys, PiP (picture in picture), PoP (pop out picture), LOGO, and transition effects.

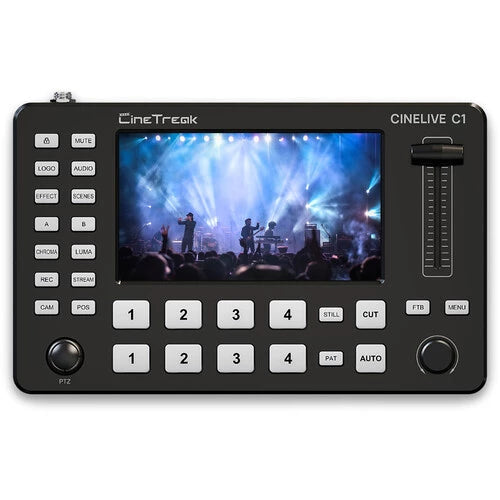

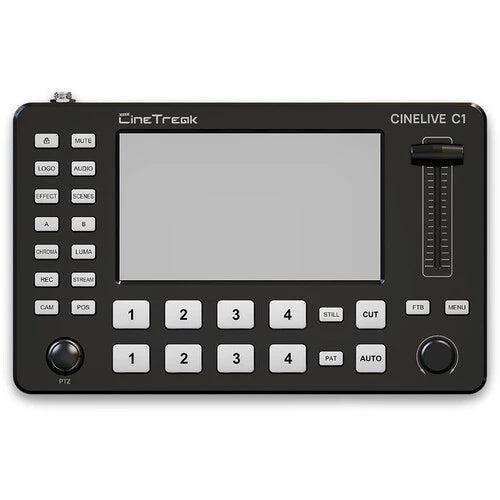

- Pushbutton, T-bar, web browser, and mobile control.
One-Key Recording and Streaming
- Use the REC key to record PGM to an external USB or SSD disk.
- The record time is displayed on the status page.
Live Streaming
- Use the Stream button to live stream to two broadcast addresses simultaneously.
- Supports both UVC and network streaming.
- Supports most popular streaming platforms.
PTZ Camera Control
- Control up to four PTZ cameras using the built-in VISCA protocol.
- Adjust camera position, focus, color, and more.
Audio Mixing and Control
- Supports up to four HDMI audio channels.

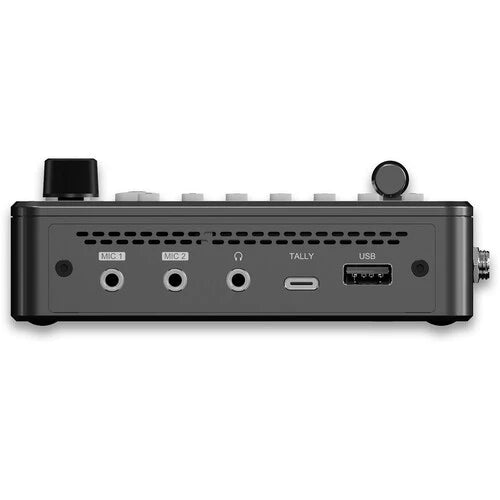

- Offers two 3.5mm mic/line audio inputs.
- Separate level, mix delay, and HDMI AFV (audio follow video) controls.
