ED DIGITAL CINEMA Top Handle Kit Overview

Key Features

• Ergonomic Top Handle with Wood Inlays
• Remote Stop and Start from Handle
• Multiple Accessory Mounting Points

Ergonomic and compact, this RED V-RAPTOR Top Handle provides a solid grip that makes it easy to carry your camera while providing multiple threaded accessory mounting points and an integrated run/stop trigger. Secure the top handle to your V-RAPTOR, and the run/stop trigger pins connect automatically. Wood inlays provide comfort and are relatively temperature stable compared to bare metal.

The top handle features multiple 1/4"-20 and 3/8"-16 threaded mounting holes with anti-twist divots along the top and sides of the handle, and there is even a mounting point with anti-twist divots on the front of the handle. Attach the optional rear support arm for an even more secure handgrip. The V-RAPTOR Top Handle is compatible with the RED KOMODO when the optional rear support is not attached.

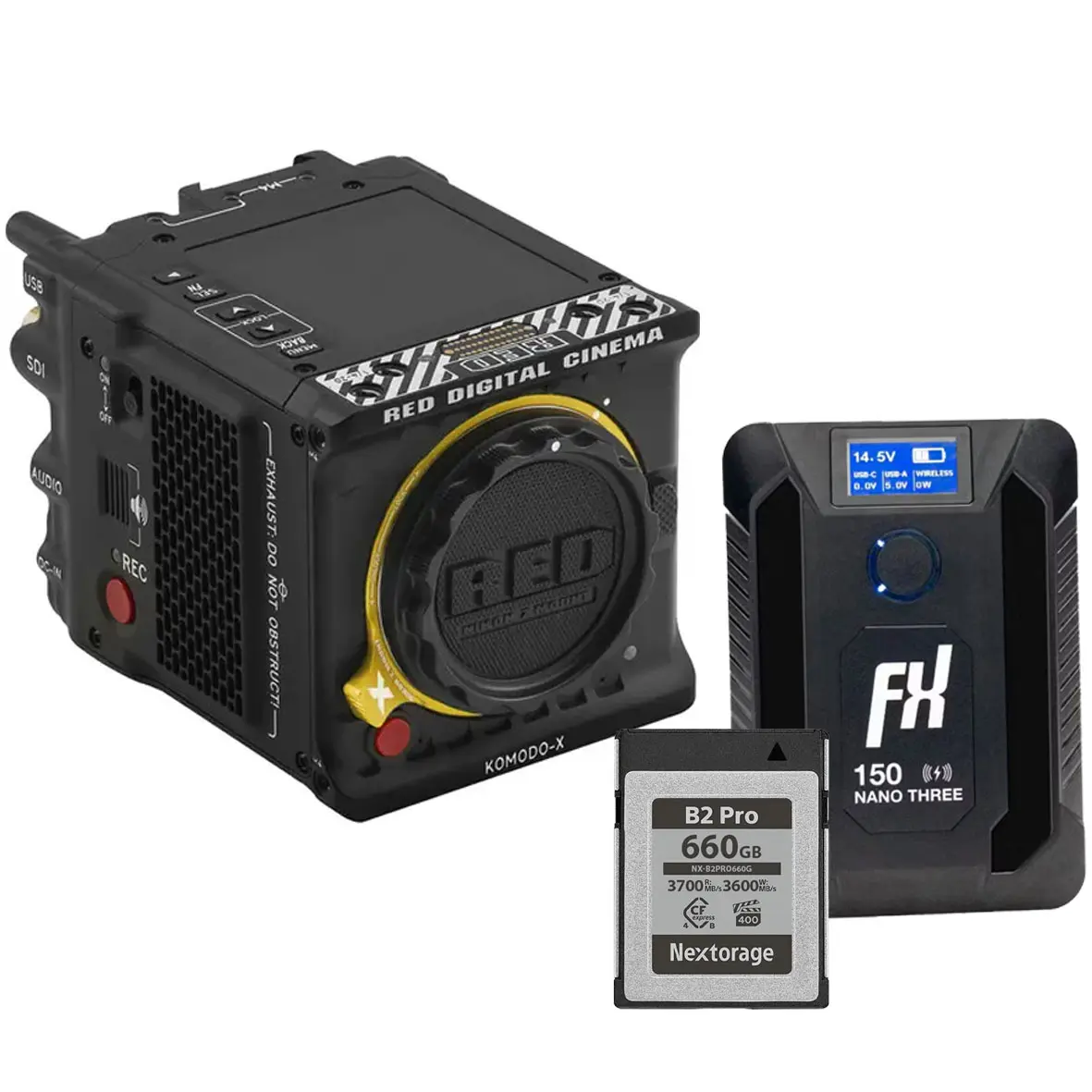

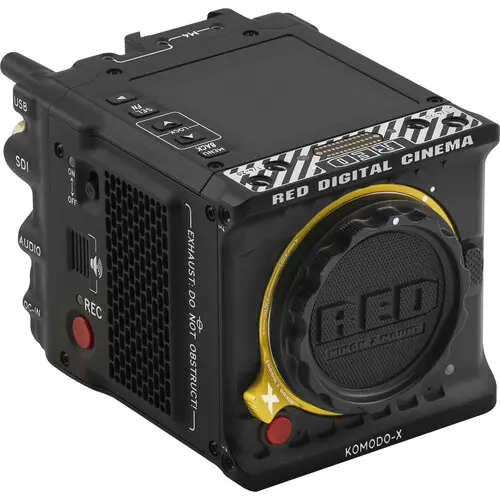

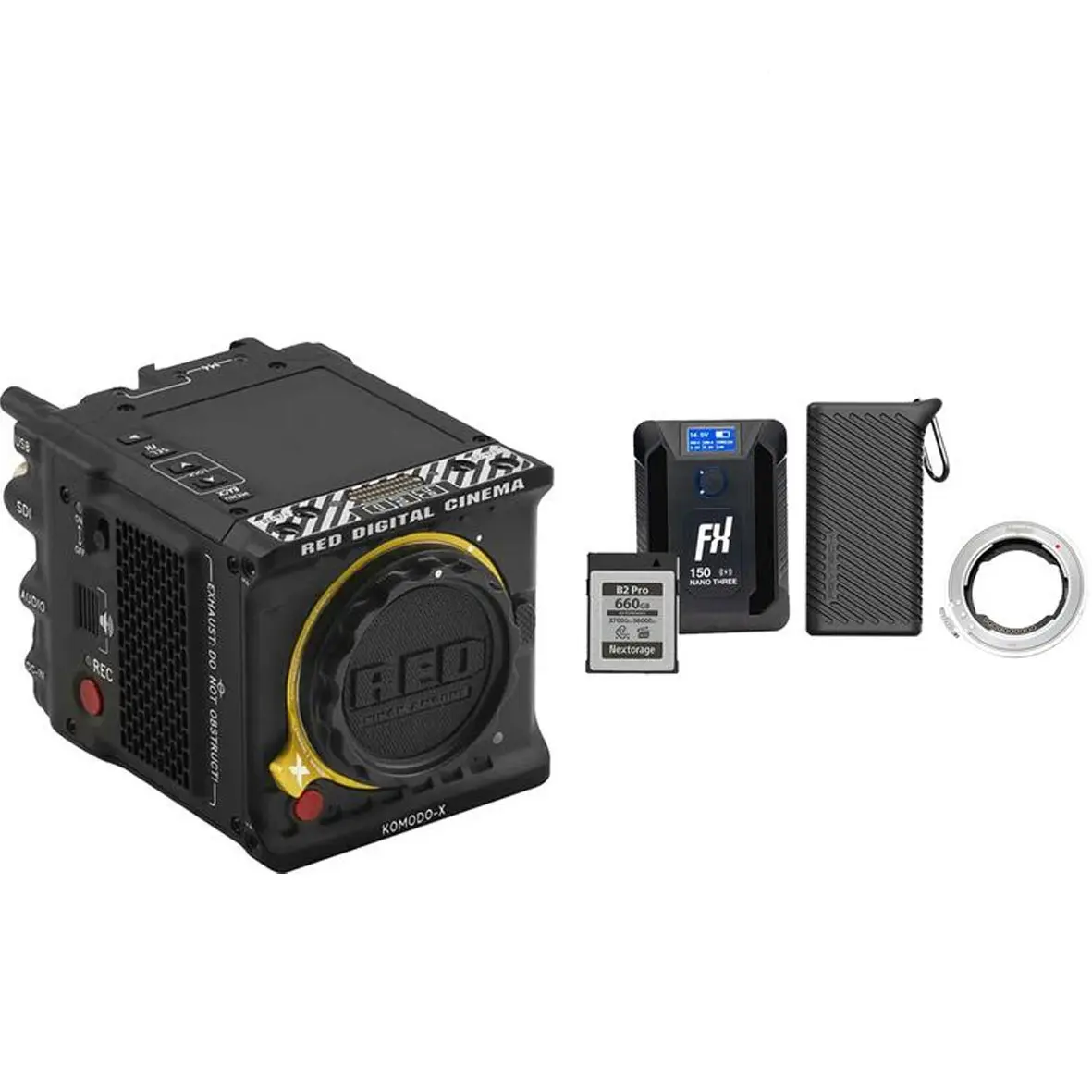

RED DIGITAL CINEMA Komodo X Overview

Key Features

• 19.9MP Super35 Global Shutter CMOS
• Compact KOMODO Line Design
• Locking Canon RF Lens Mount
• Up to 6K80p & 4K120p Video
• 12G-SDI, USB-C, 5-Pin Audio Ports
• 6K Streaming via RED Connect License
• Wireless Control, File Offload via Wi-Fi
• Integrated 2.9" Touchscreen

RED further advances its KOMODO line with the release of the black KOMODO-X 6K, a digital cinema camera featuring faster frame rates, a redesigned S35 sensor, and an updated form including advanced video and audio interfaces. With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming. The KOMODO-X will be complemented by pre-bundled packs and additional accessories such as RED Pro I/O V-Mount and Gold Mount Modules.

Next-Gen KOMODO Sensor

While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.

Compact KOMODO Form

The KOMODO-X 6K camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X is compatible with the upcoming PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use and it has a built-in micro plate that enables the direct mounting use of Micro V-mount batteries without the need for an adapter. It also incorporates a full-size, 6-pin 11-17VDC power input.

Canon RF Mount

• The KOMODO-X comes with a reinforced, locking Canon RF lens mount, offering RED's toolless lens-mount feature for compatibility with a wide range of lenses.
• To use ARRI PL-mount lenses, use the KOMODO-X with the RED RF to PL adapter with electronic ND filter.

Integrated LCD

When working in close quarters or in compact setups, users can preview their images and apply simplified controls via the integrated 2.9" LCD. Pair the KOMODO-X with the daylight-viewable, high-resolution DSMC3 7" Touch LCD offers more precise monitoring and full control in a cable-free, decluttered form.

Live Streaming and Expanded In/Out

The KOMODO-X's expanded interface includes:

• 12G-SDI video output up to 4K60p.
• A USB-C port with Ethernet offload capabilities.
• Built-in Wi-Fi for 1080p IP live streaming for web applications and in-app monitoring.

CFexpress Type B

• The KOMODO-X has a single media slot for use with a high-capacity, fast CFexpress type B card.
• Record up to 17 hours using a 4TB CFexpress type B card.
• Offload data up to 3x faster than CFast media.

Advanced Connectivity

• With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
• Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
• Multicamera and LED volume shooters will appreciate the KOMODO-X's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.

Audio Interface

Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.

Key Features

• Canon RF Camera to ARRI PL Lens
• For RED KOMODO 6K Camera
• Cooke /i & ZEISS XD Data Pass-Through
• Includes Side Ribs & Support Brackets
• Power & Record Trigger for Select Lenses
• Lightweight Aluminum Alloy Construction

The KOMODO RF to PL Adapter Pack from RED DIGITAL CINEMA enables you to use cine-style PL-mount lenses on your RF-mount RED KOMODO cinema camera. This pack includes a lens mount adapter, left- and right-side ribs, and support brackets. Constructed from lightweight aluminum alloy, the lens adapter features a solid locking mechanism.

Compatibility

RED KOMODO 6K Digital Cinema Camera.

Data Pass-Through

• Passes Cooke /i and ZEISS eXtended Data (XD) lens metadata through to R3D files in your KOMODO camera.
• Enables power and camera triggering with compatible zoom lenses.

Durable Construction

• Built from a lightweight yet durable aluminum alloy, this adapter has a solid locking mechanism.
• The included side ribs and support brackets provide support for the lens mount adapter.

Key Features

• For RED KOMODO Camera
• Simple Side Handle Option
• Ergonomic Machined Grip
• 1/4"-20 & Anti-Twist 3/8"-16 Threads

Add the Wing Grip from RED DIGITAL CINEMA to your KOMODO camera to create a low-profile, handheld support option. This aluminum handle's simple u–shaped design features an ergonomic grip and both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories.

Note:

For the KOMODO only, the Wing Grip is not compatible with DSMC, DSMC2, or RED RANGER camera systems. ​

Compatibility

RED KOMODO camera only

Low-Profile Handle

Provides a low-profile, ergonomic way to carry your KOMODO

Accessory Mounts

Multiple 1/4"-20 and anti-twist 3/8"-16 threads

DigitalFoto Solution Limited AR12 Overview

Key Features

• 12G-SDI BNC Connector at Each End
• Cable Length: 7.8"

Connect a monitor or wireless transmission system to your camera with this Canare LV-61S 12G-SDI Right-Angle Video Cable from DigitalFoto Solution Limited. The 7.8" long cable features right-angle BNC connectors at both ends, which are capable of handling video signals up to 12G-SDI.

RED DIGITAL CINEMA Komodo Overview

Key Features

• Super35 KOMODO 6K Camera
• Full-Frame 6K to 40 fps, 4K to 60 fps
• Canon RF Lens & ARRI CFast 2.0 Support
• 2 x REDVOLT BP 6300mAh Batteries
• Mechanical EF Mount Adapter
• EF Mount Adapter with Variable ND Filter
• Expander Module, Outrigger Handle
• Clear Drop-In Filter for Mount Adapter
• Wing Grip, 512GB Card & Card Reader
• D-Tap Power Cable

RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)

KOMODO 6K: Ultracompact RED

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.

All-in-One Design

Revolutionary for RED is the creation of an extremely compact all-in-one design with the KOMODO. This means you can simply pop in a CFast 2.0 card into its media slot and you are ready to roll with data rates up to 280 MB/s. A top 2.9" 1440 x 1440 touchscreen makes it easy to configure and monitor your footage or you can use the RED Control system for using an iOS or Android device for preview and settings. This is possible through integrated 2.4/5 GHz Wi-Fi. Wired control is also possible via the USB Type-C port and optional adapters. The RED KOMODO 6K offers an exceptionally compact form factor that sacrifices nothing in terms of image quality. This base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Firmware Update v.1.5.5

• Fixed playback stuttering at high frame rates, German SLA causing a camera shutdown, and RFB raw metering in 6K full frame
• Improved LCD sync issues in playback with anamorphic formats
• Improved general stability

6K S35 Sensor

• The KOMODO 6K features a 6K Super35 19.9MP CMOS sensor with a dynamic range of 16+ stops and a resolution of 6144 x 3160
• Take advantage of the 6K resolution to capture in 6K full frame or do a 4K or HD crop
• Use the higher resolution to stabilize your shot in post-production

Global Shutter

The KOMODO 6K's global shutter produces crisp images while reducing motion artifacts.Records fast-moving action the way it should be without blurred or curved lines.Captures every moment, burst, and flash without losing any dynamic range or image quality.

Canon RF Mount

The use of the Canon RF lens mount allows the KOMODO to be extremely compact while still enabling compatibility with a vast range of lenses through the use of optional adapters. The mount will natively support mechanical RF lenses and mechanical EF lenses via the included adapter. Using optional electronic EF-to-RF mount adapters, the KOMODO will even support electronic Canon EF-mount lenses and unlock additional functionality, such as autofocus.

Phase-Detect Autofocus

A first for RED is the ability to use Phase-Detect Autofocus (PDAF) with compatible lenses. This includes adapted Canon EF-mount lenses used with a separately available EF-to-RF adapter with electronic communication. Phase-detect systems are known for their speed by measuring and comparing distance and should provide a reliable, accurate system for video production. Additionally, the touchscreen can be used for quickly changing focus and selecting subjects.

REDCODE RAW

The robust REDCODE RAW file format offers versatility without burdensome storage requirements and editing on many NLE systems without transcoding to save time. The KOMODO promises to be among RED's finest with the ability to capture up to 6K at 40 fps using the powerful 16-bit REDCODE RAW format. RED has simplified compression options, giving users a choice between HQ, MQ, and LQ, each varying compression from low to high, respectively. Having these choices allows users to choose the best option for each shoot and whether to prioritize data rate or image quality. REDCODE RAW is supported for 5K up to 48 fps, 4K up to 60 fps, and 2K up to 120 fps and will deliver the greatest possible flexibility in post-production. Those looking to use a more conventional format can record natively in Apple ProRes 422 HQ and standard 422 with DCI 4K up to 60 fps or DCI 2K up to 120 fps.

CFast Recording

Capture at rates up to 280 MB/s on RED PRO or qualified third-party CFast 2.0 cards.

REDCODE Options

• HQ is perfect for VFX, extremely detailed scenes, and capturing stills from motion
• MQ is great for cinema and high-end TV projects
• LQ is ideal for TV, online content, documentaries, interviews, and long takes

Apple ProRes Formats

For proxy files or quicker turnaround times than raw files, Apple ProRes can be recorded at 4K and 2K resolutions at rates up to 120 fps (2K).

Color Management

Supports 3D LUTs and RED color science.

Touchscreen Display

Integrated 2.9" touchscreen LCD screen for video preview and camera control.

Versatile Power Options

The KOMODO 6K's power options include using two lightweight Canon BP-9 batteries, a larger battery, or an AC power supply.

RED DIGITAL CINEMA KOMODO Outrigger Handle

The KOMODO Outrigger Handle from RED DIGITAL CINEMA provides flexible handling when operating your KOMODO digital cine camera. This low-profile handle is especially suited for keeping one hand on the integrated record/stop button and the other positioned for focus pulls or zooming.

The KOMODO Outrigger handle features include a rugged build, 360° of swivel rotation for optimal positioning, and two 1/4"-20 mounting points.

RED DIGITAL CINEMA KOMODO Wing Grip

Add the Wing Grip from RED DIGITAL CINEMA to your KOMODO camera to create a low-profile, handheld support option. This aluminum handle's simple u–shaped design features an ergonomic grip and both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories.

Note:

For the KOMODO only, the Wing Grip is not compatible with DSMC, DSMC2, or RED RANGER camera systems. ​

Compatibility

RED KOMODO camera only

Low-Profile Handle

Provides a low-profile, ergonomic way to carry your KOMODO

Accessory Mounts

Multiple 1/4"-20 and anti-twist 3/8"-16 threads

RED DIGITAL CINEMA KOMODO Expander Module

The KOMODO Expander Module from RED DIGITAL CINEMA provides additional video, power, and communication interfaces for your KOMODO 6K digital cine camera. These pro video connectors include timecode in, genlock, and GPI BNC ports plus a 4-pin control interface.

This expander module incorporates multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist accessory threads. Additional features include a built-in quick release plate and durable aluminum construction.

RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card

The 512GB RED PRO CFAST 2.0 Memory Card from RED DIGITAL CINEMA provides reliable recording for the KOMODO 6K and KOMOD ST digital cinema cameras. This CFast 2.0 card features data rates up to 280 MB/s and a durable build that is both X-ray and magnet proof. Each card is resistant to extreme temperatures, humidity, shock, and vibration.

RED DIGITAL CINEMA CFAST 2.0 Card Reader

The CFAST 2.0 Card Reader from RED DIGITAL CINEMA enables you to quickly offload your KOMODO digital cine camera footage. This CFAST 2.0 card reader features a USB Type-C port that operates using a 10 Gb/s, USB 3.1 Gen 2 standard. The CFAST 2.0 Card Reader is Windows, macOS, and Linux compatible.

RED DIGITAL CINEMA D-Tap-to-Power Cable (6')

The D-Tap-to-Power Cable enables you to power your RED DIGITAL CINEMA KOMODO camera from a battery with a D-Tap 7 to 17 VDC output. This cable sports a D-Tap connector on one end and a 2-pin connector on the other, and it measures 6' including the connectors.

Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter

Extending the range of compatible lenses, this Canon Drop-In Filter Mount Adapter EF-EOS R is a unique lens adapter designed for attaching any EF or EF-S-mount lens to the EOS R mirrorless digital camera. This sophisticated adapter affords compatibility with select A-type drop-in filters, and includes a variable neutral density filter for greater control over your exposure settings.

The adapter's design extends the ability to use filters with unique lenses that cannot accept filters on the front, and and it also retains full autofocus and image stabilization capabilities of the mounted lens. It is also dust- and water-resistant, making it suitable for use in harsh weather conditions.

Canon Drop-In Clear Filter A

Designed for use with the Canon Drop-In Filter Mount Adapter EF-EOS R, this Drop-In Clear Filter A is a simple clear protective filter used to guard the interior of the camera body and rear element of the lens when the lens adapter is in use. It is primarily used when the Drop-In Filter Mount Adapter is in place, but no filter effects are desired.

RED DIGITAL CINEMA REDVOLT BP for KOMODO 6K S35

Boost your KOMODO 6K S35 runtime with the REDVOLT BP battery pack from RED DIGITAL CINEMA. This battery features a longer-lasting, 6300mAh capacity and in-camera display of the remaining battery time. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is hot-swappable and mounts directly onto your KOMODO's battery plate.

Compatibility

RED KOMODO 6K S35 camera

Long-Lasting

Has a 6300mAh capacity that enables longer runtimes

In-Camera Display

Communicates fully with your KOMODO, offering in-camera display of the remaining battery time

Hot-Swappable Compact Form

Compact design mounts directly onto the KOMODO's battery plate and can be hot-swapped

RED DIGITAL CINEMA Komodo Overview

Key Features

• Super35 KOMODO 6K Camera
• Full-Frame 6K to 40 fps, 4K to 60 fps
• Canon RF Lens & ARRI CFast 2.0 Support
• 2 x REDVOLT BP 6300mAh Batteries
• Mechanical EF Mount Adapter
• 2 x KOMODO Wing Grips
• EF-EOS R Mount Adapter, Vari ND Filter
• 512GB Card & Card Reader
• Timecode Cable

RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)

KOMODO 6K: Ultracompact RED

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.

All-in-One Design

Revolutionary for RED is the creation of an extremely compact all-in-one design with the KOMODO. This means you can simply pop in a CFast 2.0 card into its media slot and you are ready to roll with data rates up to 280 MB/s. A top 2.9" 1440 x 1440 touchscreen makes it easy to configure and monitor your footage or you can use the RED Control system for using an iOS or Android device for preview and settings. This is possible through integrated 2.4/5 GHz Wi-Fi. Wired control is also possible via the USB Type-C port and optional adapters. The RED KOMODO 6K offers an exceptionally compact form factor that sacrifices nothing in terms of image quality. This base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Firmware Update v.1.5.5

• Fixed playback stuttering at high frame rates, German SLA causing a camera shutdown, and RFB raw metering in 6K full frame
• Improved LCD sync issues in playback with anamorphic formats
• Improved general stability

6K S35 Sensor

• The KOMODO 6K features a 6K Super35 19.9MP CMOS sensor with a dynamic range of 16+ stops and a resolution of 6144 x 3160
• Take advantage of the 6K resolution to capture in 6K full frame or do a 4K or HD crop
• Use the higher resolution to stabilize your shot in post-production

Global Shutter

The KOMODO 6K's global shutter produces crisp images while reducing motion artifacts.Records fast-moving action the way it should be without blurred or curved lines.Captures every moment, burst, and flash without losing any dynamic range or image quality.

Canon RF Mount

The use of the Canon RF lens mount allows the KOMODO to be extremely compact while still enabling compatibility with a vast range of lenses through the use of optional adapters. The mount will natively support mechanical RF lenses and mechanical EF lenses via the included adapter. Using optional electronic EF-to-RF mount adapters, the KOMODO will even support electronic Canon EF-mount lenses and unlock additional functionality, such as autofocus.

Phase-Detect Autofocus

A first for RED is the ability to use Phase-Detect Autofocus (PDAF) with compatible lenses. This includes adapted Canon EF-mount lenses used with a separately available EF-to-RF adapter with electronic communication. Phase-detect systems are known for their speed by measuring and comparing distance and should provide a reliable, accurate system for video production. Additionally, the touchscreen can be used for quickly changing focus and selecting subjects.

REDCODE RAW

The robust REDCODE RAW file format offers versatility without burdensome storage requirements and editing on many NLE systems without transcoding to save time. The KOMODO promises to be among RED's finest with the ability to capture up to 6K at 40 fps using the powerful 16-bit REDCODE RAW format. RED has simplified compression options, giving users a choice between HQ, MQ, and LQ, each varying compression from low to high, respectively. Having these choices allows users to choose the best option for each shoot and whether to prioritize data rate or image quality. REDCODE RAW is supported for 5K up to 48 fps, 4K up to 60 fps, and 2K up to 120 fps and will deliver the greatest possible flexibility in post-production. Those looking to use a more conventional format can record natively in Apple ProRes 422 HQ and standard 422 with DCI 4K up to 60 fps or DCI 2K up to 120 fps.

CFast Recording

Capture at rates up to 280 MB/s on RED PRO or qualified third-party CFast 2.0 cards.

REDCODE Options

• HQ is perfect for VFX, extremely detailed scenes, and capturing stills from motion
• MQ is great for cinema and high-end TV projects
• LQ is ideal for TV, online content, documentaries, interviews, and long takes

Apple ProRes Formats

For proxy files or quicker turnaround times than raw files, Apple ProRes can be recorded at 4K and 2K resolutions at rates up to 120 fps (2K).

Color Management

Supports 3D LUTs and RED color science.

Touchscreen Display

Integrated 2.9" touchscreen LCD screen for video preview and camera control.

Versatile Power Options

The KOMODO 6K's power options include using two lightweight Canon BP-9 batteries, a larger battery, or an AC power supply.

Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter

Extending the range of compatible lenses, this Canon Drop-In Filter Mount Adapter EF-EOS R is a unique lens adapter designed for attaching any EF or EF-S-mount lens to the EOS R mirrorless digital camera. This sophisticated adapter affords compatibility with select A-type drop-in filters, and includes a variable neutral density filter for greater control over your exposure settings.

The adapter's design extends the ability to use filters with unique lenses that cannot accept filters on the front, and and it also retains full autofocus and image stabilization capabilities of the mounted lens. It is also dust- and water-resistant, making it suitable for use in harsh weather conditions.

RED DIGITAL CINEMA CFAST 2.0 Card Reader

The CFAST 2.0 Card Reader from RED DIGITAL CINEMA enables you to quickly offload your KOMODO digital cine camera footage. This CFAST 2.0 card reader features a USB Type-C port that operates using a 10 Gb/s, USB 3.1 Gen 2 standard. The CFAST 2.0 Card Reader is Windows, macOS, and Linux compatible.

RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card

The 512GB RED PRO CFAST 2.0 Memory Card from RED DIGITAL CINEMA provides reliable recording for the KOMODO 6K and KOMOD ST digital cinema cameras. This CFast 2.0 card features data rates up to 280 MB/s and a durable build that is both X-ray and magnet proof. Each card is resistant to extreme temperatures, humidity, shock, and vibration.

RED DIGITAL CINEMA KOMODO Wing Grip

Add the Wing Grip from RED DIGITAL CINEMA to your KOMODO camera to create a low-profile, handheld support option. This aluminum handle's simple u–shaped design features an ergonomic grip and both 1/4"-20 and anti-twist 3/8"-16 threads for attaching accessories.

Note:

For the KOMODO only, the Wing Grip is not compatible with DSMC, DSMC2, or RED RANGER camera systems. ​

Compatibility

RED KOMODO camera only

Low-Profile Handle

Provides a low-profile, ergonomic way to carry your KOMODO

Accessory Mounts

Multiple 1/4"-20 and anti-twist 3/8"-16 threads

RED DIGITAL CINEMA EXT-to-Timecode Cable (3')

The EXT-to-Timecode Cable enables you to input timecode to your RED DIGITAL CINEMA KOMODO camera. This cable links to the camera via its 9-pin EXT connector and measures 3' including the connectors.

RED DIGITAL CINEMA REDVOLT BP for KOMODO 6K S35

Boost your KOMODO 6K S35 runtime with the REDVOLT BP battery pack from RED DIGITAL CINEMA. This battery features a longer-lasting, 6300mAh capacity and in-camera display of the remaining battery time. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is hot-swappable and mounts directly onto your KOMODO's battery plate.

Compatibility

RED KOMODO 6K S35 camera

Long-Lasting

Has a 6300mAh capacity that enables longer runtimes

In-Camera Display

Communicates fully with your KOMODO, offering in-camera display of the remaining battery time

Hot-Swappable Compact Form

Compact design mounts directly onto the KOMODO's battery plate and can be hot-swapped

RED DIGITAL CINEMA REDVOLT BP Overview

Key Features

• Powers RED KOMODO 6K S35 Camera
• Long-Lasting 6300mAh Capacity
• Compact, Hot-Swappable Form
• Attaches Directly to KOMODO Battery Slot
• Displays Remaining Time in Camera

Boost your KOMODO 6K S35 runtime with the REDVOLT BP battery pack from RED DIGITAL CINEMA. This battery features a longer-lasting, 6300mAh capacity and in-camera display of the remaining battery time. Designed in conjunction with battery-maker Core SWX, the compact REDVOLT BP is hot-swappable and mounts directly onto your KOMODO's battery plate.

Compatibility

RED KOMODO 6K S35 camera

Long-Lasting

Has a 6300mAh capacity that enables longer runtimes

In-Camera Display

Communicates fully with your KOMODO, offering in-camera display of the remaining battery time

Hot-Swappable Compact Form

Compact design mounts directly onto the KOMODO's battery plate and can be hot-swapped

RED DIGITAL CINEMA 750-0094 Overview

Key Features

• Designed for KOMODO Camera
• Compatible with CFast 2.0 Cards
• USB 3.1 Interface, USB Type-C Port
• 10 Gb/s USB 3.1 Gen 2 Standard
• Windows, macOS & Linux Compatible

The CFAST 2.0 Card Reader from RED DIGITAL CINEMA enables you to quickly offload your KOMODO digital cine camera footage. This CFAST 2.0 card reader features a USB Type-C port that operates using a 10 Gb/s, USB 3.1 Gen 2 standard. The CFAST 2.0 Card Reader is Windows, macOS, and Linux compatible.

RED DIGITAL CINEMA 512GB CFast 2.0 Overview

Key Features

• 512GB Storage Capacity
• For the RED KOMODO 6K and ST Cameras
• Durable Build
• X-Ray and Magnet Proof

The 512GB RED PRO CFAST 2.0 Memory Card from RED DIGITAL CINEMA provides reliable recording for the KOMODO 6K and KOMOD ST digital cinema cameras. This CFast 2.0 card features data rates up to 280 MB/s and a durable build that is both X-ray and magnet proof. Each card is resistant to extreme temperatures, humidity, shock, and vibration.

Red Digital Cinema Komodo 6K Digital Cinema Camera Overview

Key Features

• 19.9MP Super35 Global Shutter CMOS
• Compact, 2.1 lb All-in-One Design
• Canon RF Lens & ARRI CFast 2.0 Support
• 16+ Stops Dynamic Range
• Up to 6K40, 5K48, 4K60 & 2K120 Recording
• REDCODE RAW HQ/MQ/LQ & Apple ProRes
• Integrated 2.9" 1440 x 1440 Touchscreen
• Wireless Control & Preview via Wi-Fi
• CFast 2.0 Card Slot; RED IPP2 Support
• EF-to-RF Mechanical Adapter Included

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultra-compact, all-in-one design that weighs just 2.1 lb measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic Range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production. The KOMODO firmware update Beta v.1.5.0 adds support for 6K anamorphic, 4-channel audio, FTPS for remote offloading, Canon RF lens-control ring support, and more. It also adds ExAscend CFast 512GB and 1TB cards to the approved media list.

Revolutionary for RED is the creation of an extremely compact all-in-one design with the KOMODO. This means you can simply pop in a CFast 2.0 card into its media slot and you are ready to roll with data rates up to 280 MB/s. A top 2.9" 1440 x 1440 touchscreen makes it easy to configure and monitor your footage or you can use the RED Control system for using an iOS or Android device for preview and settings. This is possible through integrated 2.4/5 GHz Wi-Fi. Wired control is also possible via the USB Type-C port and optional adapters.

The use of the Canon RF lens mount allows the KOMODO to be extremely compact while still enabling compatibility with a vast Range of lenses through the use of optional adapters. The mount will natively support mechanical RF lenses and mechanical EF lenses via the included adapter. Using optional electronic EF-to-RF mount adapters, the KOMODO will even support electronic Canon EF-mount lenses and unlock additional functionality, such as autofocus.

A first for RED is the ability to use Phase-Detect Autofocus (PDAF) with compatible lenses. This includes adapted Canon EF-mount lenses used with a separately available EF-to-RF adapter with electronic communication. Phase-detect systems are known for their speed by measuring and comparing distance and should provide a reliable, accurate system for video production. Additionally, the touchscreen can be used for quickly changing focus and Selecting subjects.

Getting back to image quality, the KOMODO promises to be among RED's finest with the ability to capture up to 6K at 40 fps using the powerful 16-bit REDCODE RAW format. RED has simplified compression options, giving users a choice between HQ, MQ, and LQ, each varying compression from low to high, respectively. Having these choices allows users to choose the best option for each shoot and whether to prioritize data rate or image quality. REDCODE RAW is supported for 5K up to 48 fps, 4K up to 60 fps, and 2K up to 120 fps and will deliver the greatest possible flexibility in post-production. Those looking to use a more conventional format can record natively in Apple ProRes 422 HQ and standard 422 with DCI 4K up to 60 fps or DCI 2K up to 120 fps.

Being a complete all-in-one camera solution, the KOMODO features an array of necessary ports and connections. This includes integrated stereo microphones and a 3.5mm input for audio, genlock/timecode/GPIO/RS232 support via a 9-pin EXT port, and a DC power input. A 12G-SDI port will support up to DCI 4K at 60 fps in 10-bit 4:2:2 quality for dedicated monitoring solutions. The rear of the camera also sports dual Canon BP-9xx series battery slots which can be hot-swapped for practically unlimited recording in the field.

The RED KOMODO 6K offers an exceptionally compact form factor that sacrifices nothing in terms of image quality. This base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Firmware Update Beta v1.5.0

Beta v1.5.0 Anamorphic Support

• Added 6K 2:1 format
• Added 6K anamorphic R3D file support (requires REDCINE-X PRO v52.3 or later)

Beta v1.5.0 Audio Support

• 4-channel audio support
• BWAV support for off-speed audio

Beta v1.5.0 Additional Features

• Live stream tools and magnify support
• FTPS (File Transfer Protocol Secure) support for remote offloading
• Wi-Fi scan support
• Prism viewfinder mode
• Canon RF lens control ring support
• Cross-sync support for genlock 30p, SDI 60p, etc.
• Static IP support was added to Infrastructure mode
• ExAscend CFast 512GB and 1TB cards added to approved media list
• Fixed intermittent "Error loading clip" message in playback

Beta v1.5.0 Notes

• Magnify over live stream and LCD in 2/4/5K will cause the live stream to freeze; restart the camera to re-enable
• Does not currently support RF lens focus Range switch
• Warning message occurs with unapproved media and batteries

6K S35 Sensor

6K Super35 19.9MP CMOS sensor with a dynamic Range of 16+ stops and a resolution of 6144 x 3160

Global Shutter

The KOMODO 6K's global shutter produces crisp images while reducing motion artifacts

Compact form, Versatile Power

Weighing just over 2 lb, the KOMODO 6K's power options include using two lightweight Canon BP-9 batteries, a larger battery, or an AC power supply

CFast Recording

Capture at rates up to 280 MB/s on RED PRO or qualified third-party CFast 2.0 cards

REDCODE RAW

The robust REDCODE RAW file format offers versatility without burdensome storage requirements and editing on many NLE systems without transcoding to save time

REDCODE Options

• HQ is perfect for VFX, extremely detailed scenes, and capturing stills from motion
• MQ is great for cinema and high-end TV projects
• LQ is ideal for TV, online content, documentaries, interviews, and long takes

Apple ProRes formats

for proxy files or quicker turnaround times than raw files, Apple ProRes can be recorded at 4K and 2K resolutions at rates up to 120 fps (2K)

Color Management

Supports 3D LUTs and RED color science

Touchscreen Display

Integrated 2.9" touchscreen LCD screen for video preview and camera control
