FeelWorld F5-PRO Overview
Key Features
- V3 Model, 1920 x 1152 Screen Resolution
- HDMI Input & Loop Output, Headphone Out
- Support for up to DCI 4K Video, 3D LUTs
- Tilt Arm & Mini Fill Light
- 500 cd/m² Brightness, 160° Angle of View
- Histogram, Vectorscope & More
- Pinch-to-Zoom Touchscreen Gesture
- DC & USB Type-C Power Inputs; DC Output
- L-Series Battery Plate
- Rear Bracket for Attaching Transmitters

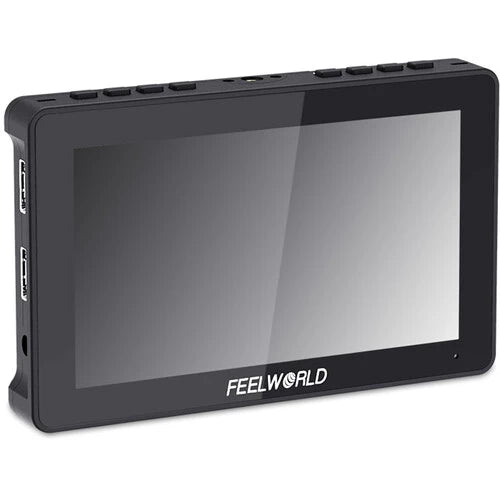

Add a high-resolution monitor to your 4K camera with the F5 Pro V3 5.5" 4K HDMI IPS Touchscreen Monitor from FeelWorld. It features a 5.5" touchscreen display with 1920 x 1152 resolution, 1000:1 contrast ratio, and 500 cd/m² brightness. It includes 3D LUT support with four built-in LUT profiles, and up to 32 custom 3D LUTs can be loaded by the operator. This V3 model has been updated to include a mini LED fill light that can mount onto the back of the monitor or via its 1/4"-20 thread.

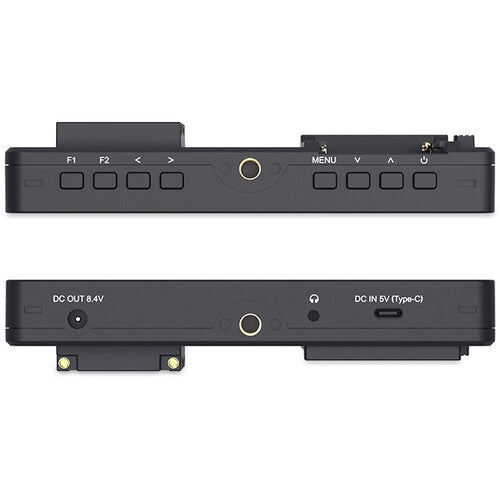

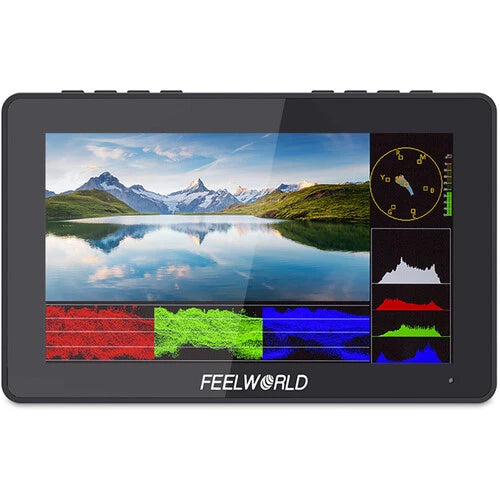

The F5 Pro V3 features a pinch-to-zoom touchscreen, which allows you to zoom in or out with a pinch gesture to view closer detail in your images. The monitor has an HDMI input and loop output, and it supports up to DCI 4K video signals, as well as a headphone output for audio monitoring. Via the internal menu, touchscreen functionality can be turned off to prevent accidental swipes and other touchscreen commands, and you can then use the buttons on top of the monitor. For accurate exposure, focus, and other characteristics, the F5 Pro V3 is loaded with monitoring features such as vectorscope, histogram, anamorphic mode, and audio level meters. Its 3D LUT support allows you to utilize its four built-in Log LUTs when you're viewing Rec. 709 video, or you can upload up to 32 user LUTs using the USB input to utilize a variety of looks and camera formats.

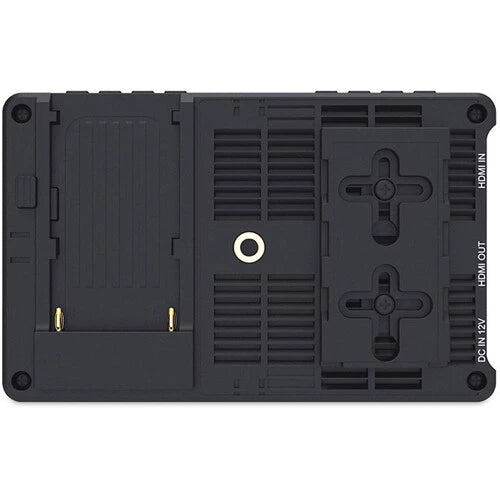

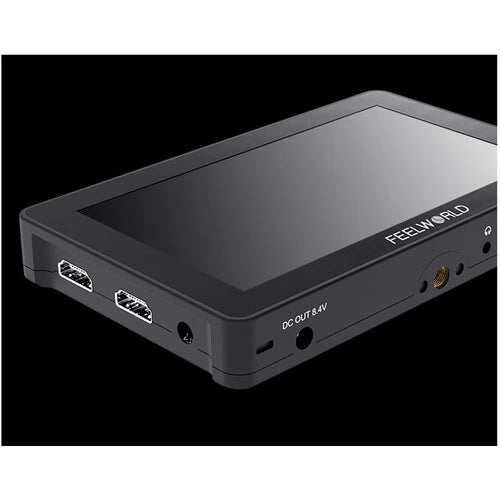

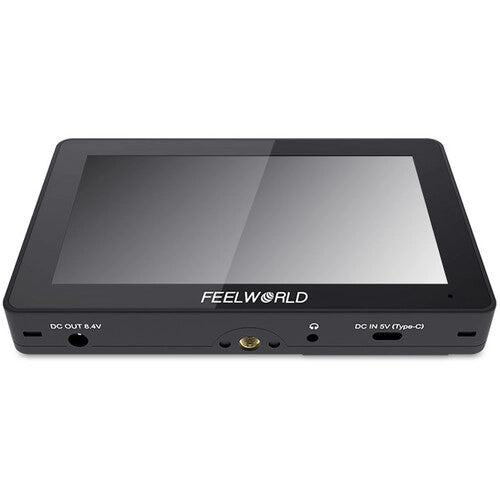

Multiple power options consist of a DC barrel input port for an optional power adapter, a 5 VDC USB Type-C port for connecting a USB power bank, and an L-series battery plate on the rear. There's also an 8.4 VDC barrel output port that allows you to power external devices such as cameras and accessories using a separately available cable. The monitor provides multiple 1/4"-20 mounting threads, so you can attach the monitor as best suits your needs. There's one on the bottom, top, right, and middle rear. A 1/4"-20 to shoe mount tilt arm is included for attaching the monitor directly onto your camera and adjusting the tilt angle as needed. The tilt arm also offers an additional shoe mount on the side for mounting a mic or other accessory like the included LED light.

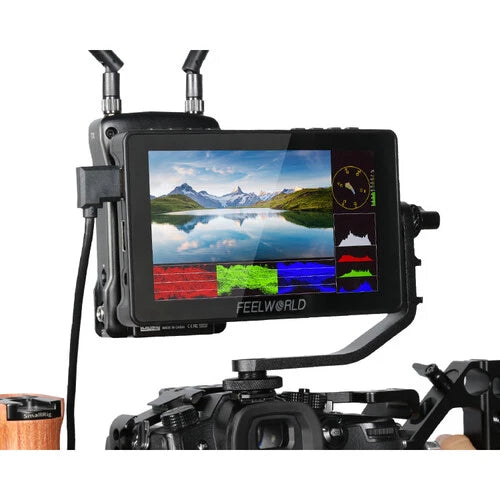

The F5 Pro V3 also comes with an installation bracket secured on the back that allows you to attach transmitters, converters, and other devices. Also included is a sun hood for better viewing in bright outdoor conditions.
Key Features
5.5" touchscreen display
1920 x 1152 screen resolution
Supports four built-in 3D LUTs for Rec. 709 video and custom user-loaded 3D LUTs via the USB port
Up to DCI 4K video input
500 cd/m² brightness
HDMI input and loop output
Headphone output
DC and USB Type-C power inputs
L-series battery plate
DC output
Four 1/4"-20 mounting threads
Bracket on the rear for attaching transmitters, converters, and other devices
Rec.709 color standard
Software Features
Brightness histogram
Peaking focus assist
False color
Zebra
Check field
Underscan/overscan
Anamorphic mode (1.3x, 2.0x)
Image flip (H, V, H/V)
Image freeze
Center marker
Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Color temperature adjustment
Nine grid
Zoom (4x, 9x, 16x)
Aspect ratio
Pixel-to-pixel
Zoom all
U/D zoom, L/R zoom
