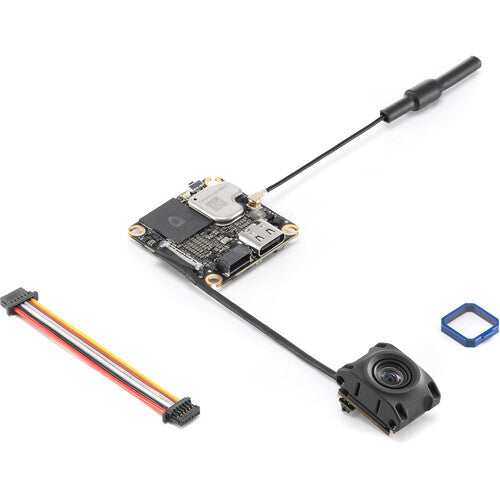

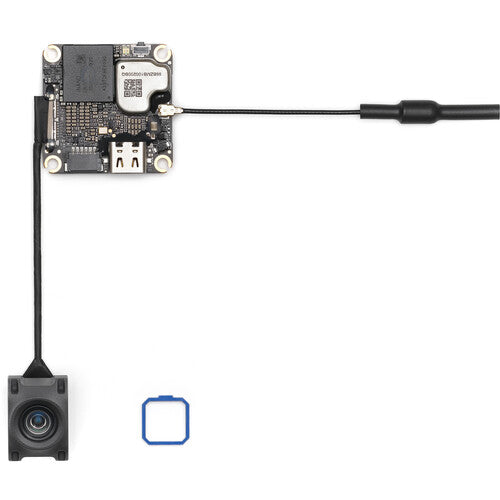

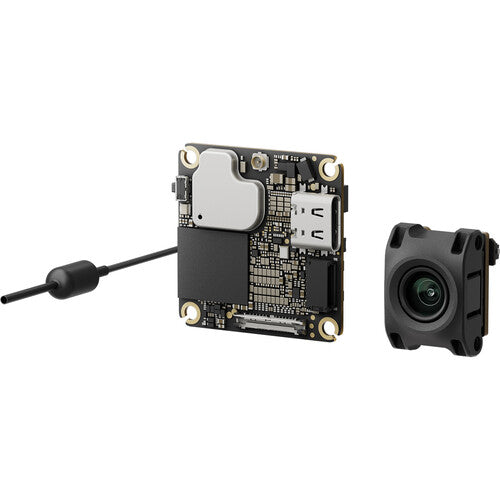

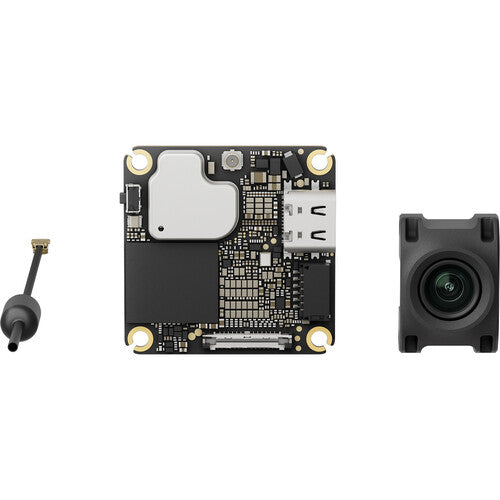

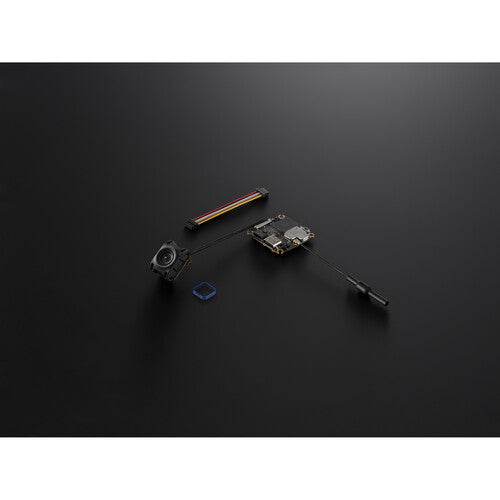

DJI O4 Air Unit

Camera

Image Sensor: 1/2" CMOS FOV: 117.6° Equivalent Focal Length: 14mm Aperture: f/2.8 Minimum Focus Distance: 2' / 0.6 m ISO Range (Auto): 100 to 6400 ISO Range (Manual): 100 to 12,800 Video Resolution (4K 4:3): 3840 x 2880 at 30, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 50, and 60 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 50, 60, 100, 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 50, 60, 100, 120 fps Video Format: MP4 Video Bit Rate (Max): 100 Mb/s

Storage Capacity

23 GB

Wireless

5.8 GHz Radio/RF

Mobile App Compatible

No

Type of Transmitter

Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85 Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) Transmitter Power (EIRP): 5.8 GHz: <30 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 6.2 Miles / 10 km (FCC), Up to 3.7 Miles / 6 km (CE/SRRC) Live View Quality: 1080p at 30, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 1T1R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH

Latency

With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 20 ms With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 24 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 35 ms

Power Source

Proprietary Interface

DC Input Power

3.7 to 13.2 VDC

Color

Black

Operating Conditions

14 to 104°F / -10 to 40°C

Cable Length

2" / 50 mm (Coaxial) 2" / 50 mm (3-in-1)

Dimensions

1.2 x 1.2 x 0.2" / 30 x 30 x 6 mm (Transmission Module) 0.6 x 0.53 x 0.49" / 16.5 x 13.44 x 12.36 mm (Camera Module) 3.1" / 80 mm (Antenna)

Weight

0.2 oz / 5.1 g (Without Camera Module) 0.2 oz / 5.8 g (With Camera Module) 0.03 oz / 0.75 g (Antenna)

Package Weight

0.065 lb

Box Dimensions (LxWxH)

3.6 x 3.5 x 0.9"
